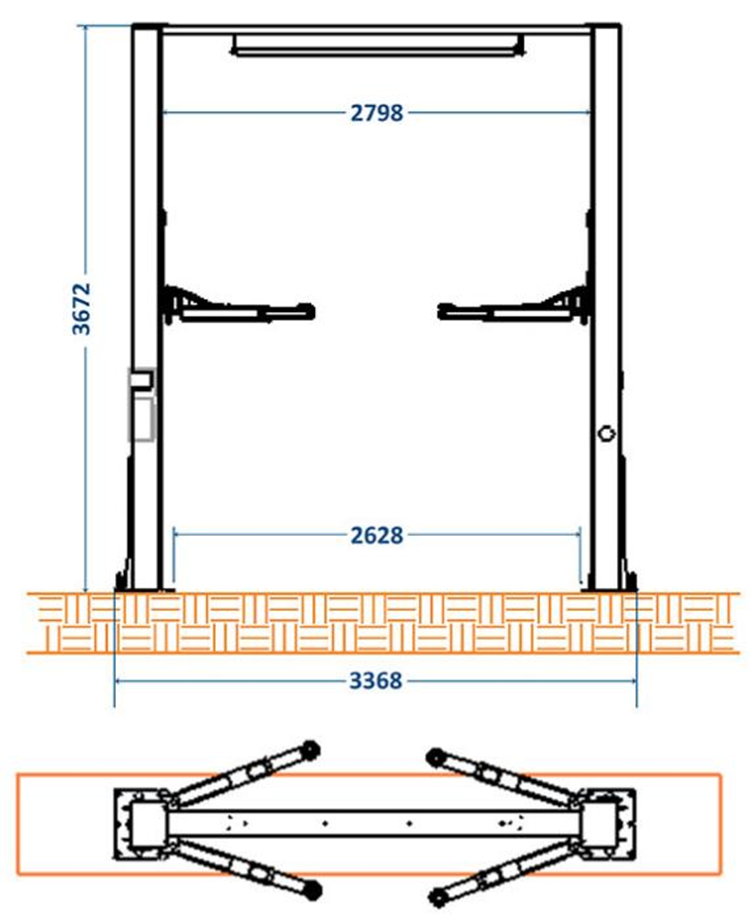

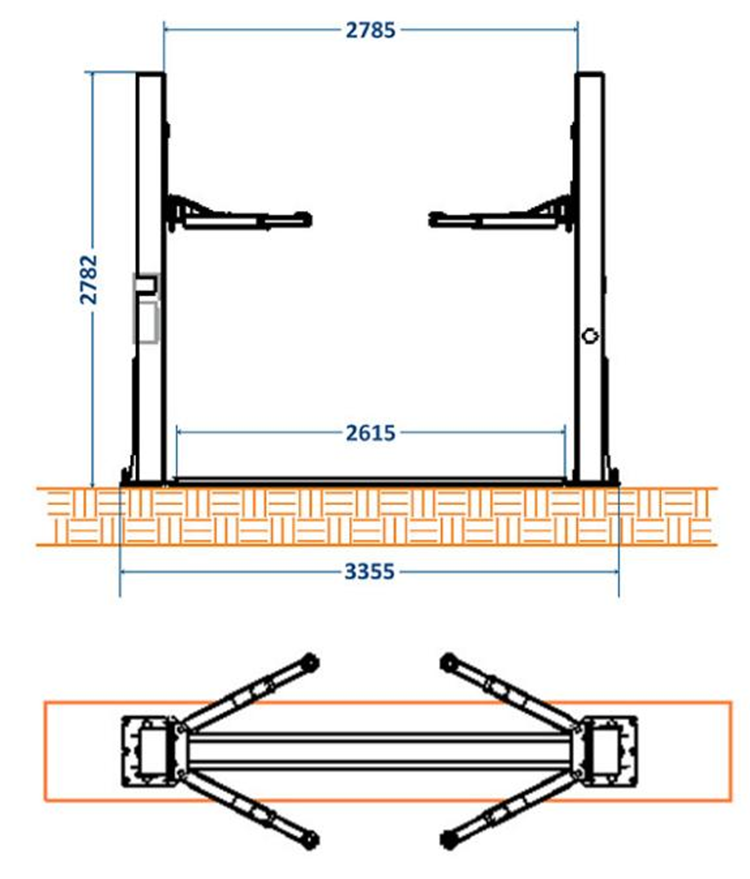

Foundation and power requirements for gantry and floor type two post car lifts
Installation requirements for two post car lifts
(1) One-time perfusion concrete structure, thickness of not less than 150mm and no reinforcement, must be completely dry before installation;
(2) The concrete strength must be greater than 3000PSI(about 210kg/cm2); The strength can be measured by drilling holes on the cement floor using impact, and the strength of the cement powder that is drilled out is fine powder.
(3) The installation ground must be smooth and level, and there must be no cracks.
(4) The power supply capacity must be greater than 2.2kw, the wire diameter is greater than 2.5mm, and it must be well grounded.
