Items / Specifications | Accuracy | Range |
Display accuracy | 0.01 mm/0.01° | / |
SAI | ±0.02° | ±20° |
Camber | ±0.02° | ±10° |
Toe | ±0.02° | ±20° |
Caster | ±0.05° | ±20° |
Thrust angle | ±0.02° | ±5° |
Back angle | ±0.02° | ±5° |
Total toe | ±0.02° | ±20° |
Maximum turns | ±0.08° | ±50° |

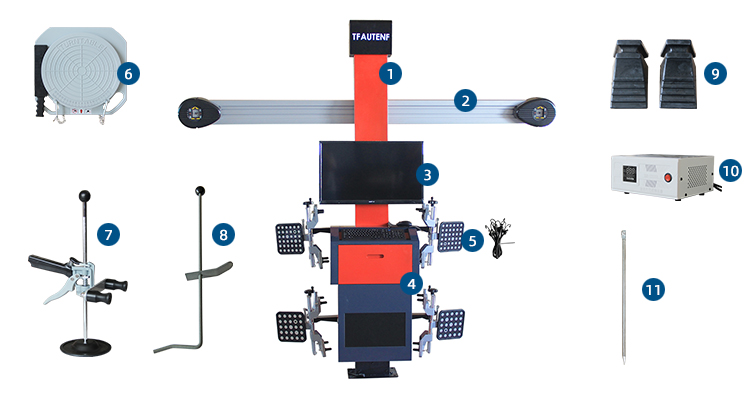

1 | post assembly | 1 set |
2 | beam & camera assembly | 1 set |
3 | Dell computer system (host+19" screen+32" screen+keyboard+mouse) | 1 set |
4 | cabinet | 1 set |
5 | clamp+target+protective rope | 4 sets |
6 | turntable & transition block | 2 sets |
7 | steering wheel holder | 1 set |
8 | brake holder | 1 set |
9 | wedge-shaped pad | 1 set (2 pc) |
10 | voltage regulator | 1 set |
11 | ground needle | 1 set |
