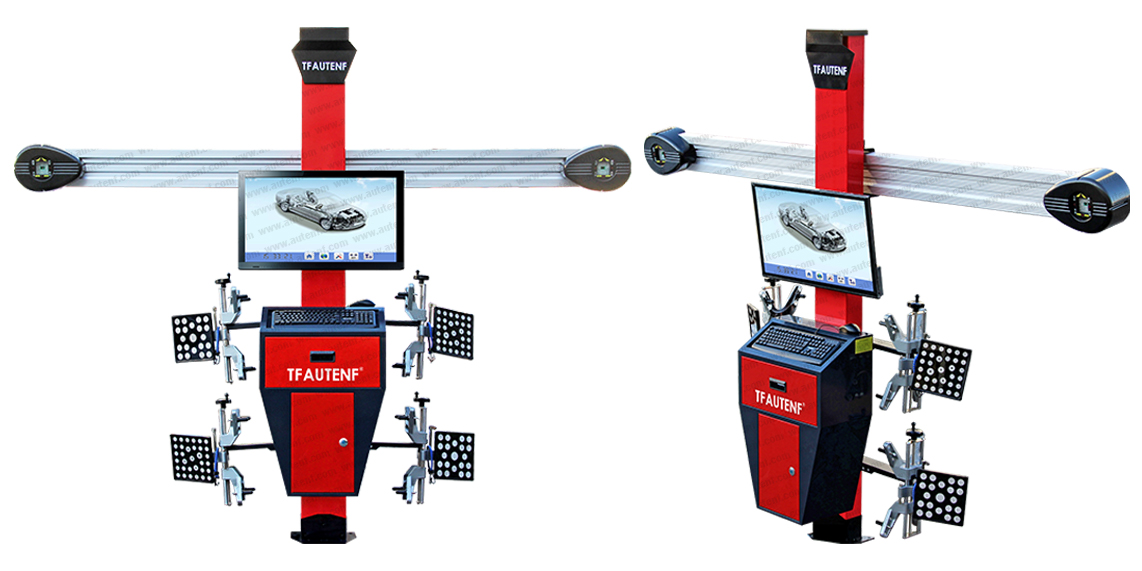

TF-L3WA wheel aligner

Download: PDF



Items / Specifications Accuracy Range
Display accuracy 0.01 mm/0.01° /
SAI ±0.02° ±20°
Camber ±0.02° ±10°
Toe ±0.02° ±20°
Caster ±0.05° ±20°
Thrust angle ±0.02° ±5°
Back angle ±0.02° ±5°
Total toe ±0.02° ±20°
Maximum turns ±0.08° ±50°

1 post assembly 1 set
2 beam & camera assembly 1 set
3 computer system (host+32" screen+keyboard+mouse) 1 set
4 cabinet 1 set
5 clamp+target+protective rope 4 sets
6 turntable & transition block 2 sets
7 steering wheel holder 1 set
8 brake holder 1 set
9 wedge-shaped pad 1 set (2 pc)
10 ground needle 1 set
Note: Due to product improvements design, specifications are subject to change without notice.
