| Items / Specifications | Accuracy | Range |
|
Display accuracy |
0.01 mm/0.01° | / |
|
SAI |
±0.02° | ±20° |
|
Camber |
±0.02° | ±10° |
|
Toe |
±0.02° | ±20° |
|
Caster |
±0.05° | ±20° |
|
Thrust angle |
±0.02° | ±5° |
|
Back angle |
±0.02° | ±5° |
|
Total toe |
±0.02° | ±20° |
|
Maximum turns |
±0.08° | ±50° |

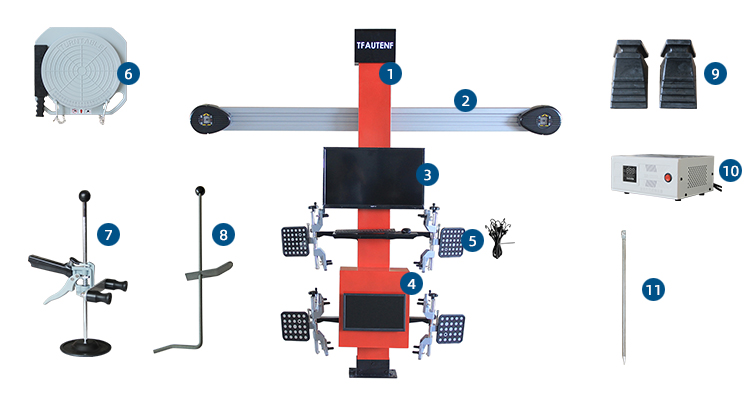

| 1 | post assembly | 1 set |
| 2 | beam & camara assembly | 1 set |
| 3 | Lenovo computer system (host+32" screen+19" screen+keyboard+mouse) | 1 set |
| 4 | cabinet | 1 set |
| 5 | clamp+target+protective rope | 4 sets |
| 6 | turntable & transition block | 2 sets |
| 7 | steering wheel holder | 1 set |
| 8 | brake holder | 1 set |
| 9 | wedge-shaped pad | 1 set (2 pc) |
| 10 | voltage regulator | 1 set |
| 11 | ground needle | 1 set |
