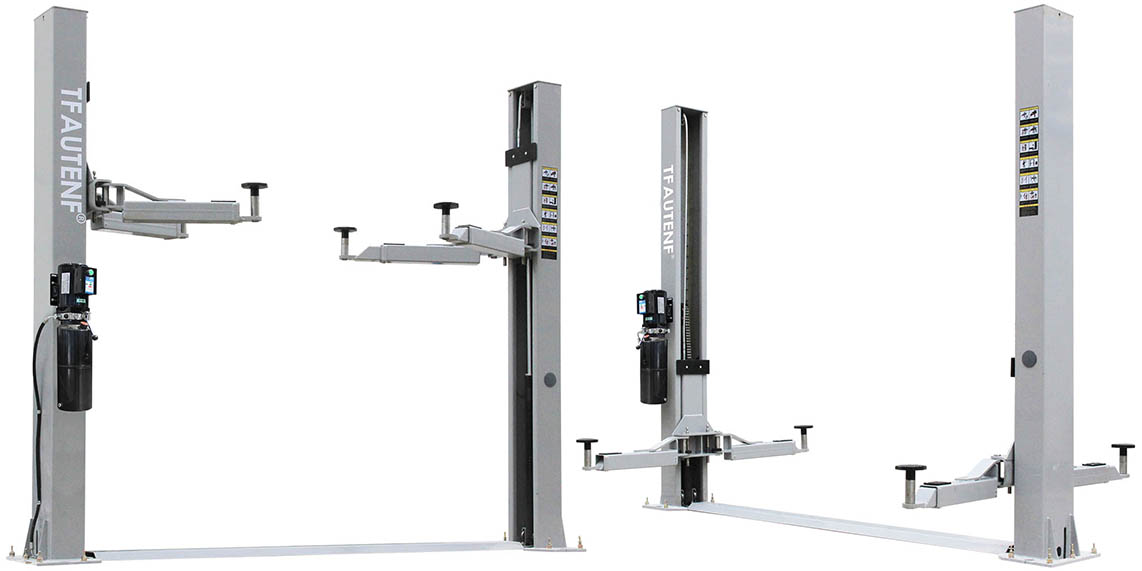

TF-B45 two post car lift with floor plate

Download: PDF


ODM/OEM service available.
Click to see its working video: TFAUTENF car lift
Click to see its adaptors: TFAUTENF car lift

Specification / Models TF-B45
Lifting capacity 4500 kg/set (9920 lb/set)
Lifting stroke 1750 mm (68.9 in)
Max. lifting height 1870 mm (73.6 in)
Min. height 120 mm (4.7 in)
Column height 2782 mm (109.5 in)
Width between columns 2810 mm (110.5 in)
Max. installation width 3380 mm (133 in)
Pass width between two columns 2540 mm (100 in)
Length of lifting arm 700~1100 mm (27.5~43.3 in)
Power supply 110V/220V/380V
Motor power 2.2 kW
Unlock method Bilateral manual unlocking

1. high quality electric-hydraulic pump, powerful, and low failure rate;

2. floor-plate design, more suitable for low ceiling workshop;

3. dual cylinders located in master and slave column, with high strength chain drives system;

4. special hydraulic system design to avoid overload running;

5. dual anti-skidding safety device to ensure safety of the vehicle;

6. ISO 9001: 2015 and CE certificated;


Note
: Due to product improvements design, specifications are subject to change without notice.
