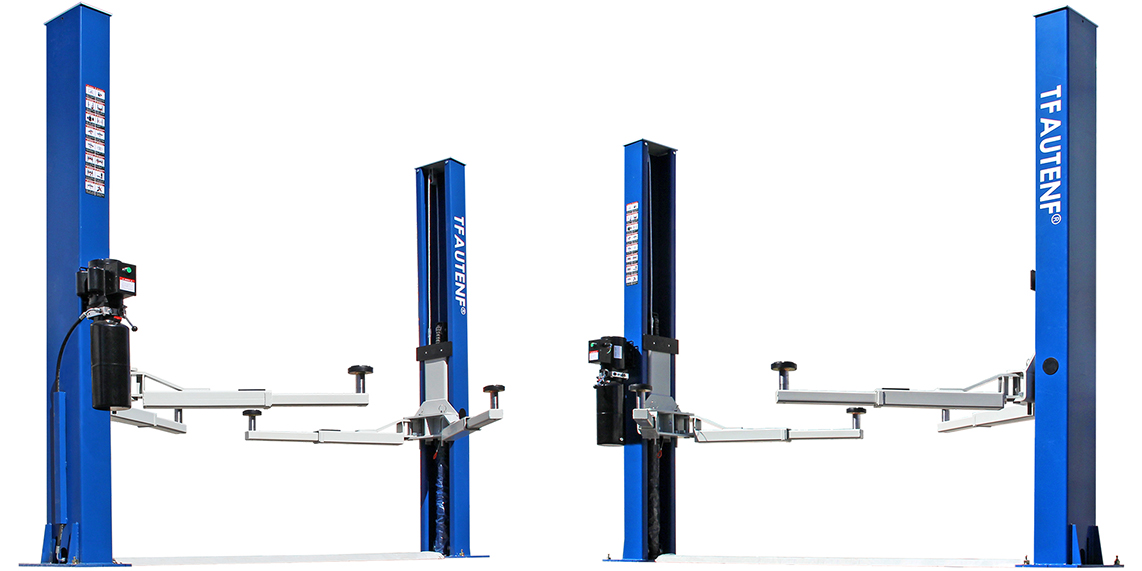

TF-B40 two post car lift with floor plate

Download: PDF



ODM/OEM service available.
Click to see its working video.
Click to see height adaptors.

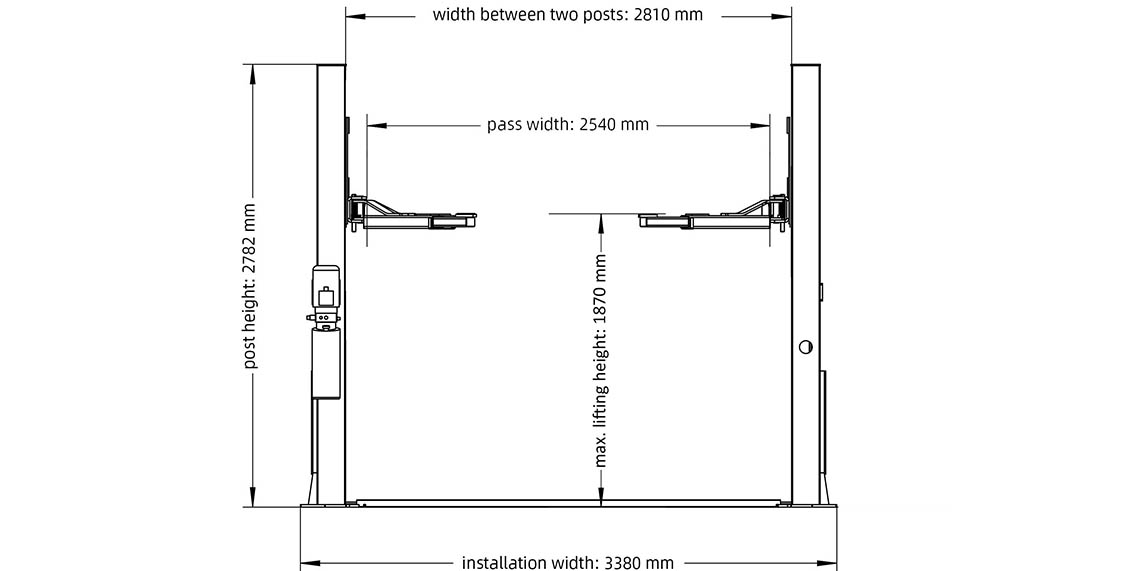

Specification / Models TF-B40
Column quantity 2
Lifting capacity 4000 kg/set (8818 lb/set)
Lifting stroke 1750 mm (68.9 in)
Max. lifting height 1870 mm (73.6 in)
Min. height 120 mm (4.7 in)
Column height 2782 mm (109.5 in)
Width between columns 2810 mm (110.5 in)
Max. installation width 3380 mm (133 in)
Pass width between two columns 2540 mm (100 in)
Length of lifting arm 700~1100 mm (27.5~43.3 in)
Lifting time 60 s
Falling time 50 s
Power supply 220V/380V
Motor power 2.2 kw
Weight 520 kg (1146 lb)
Unlock method Bilateral manual unlocking
Note: Due to product improvements design, specifications are subject to change without notice.
