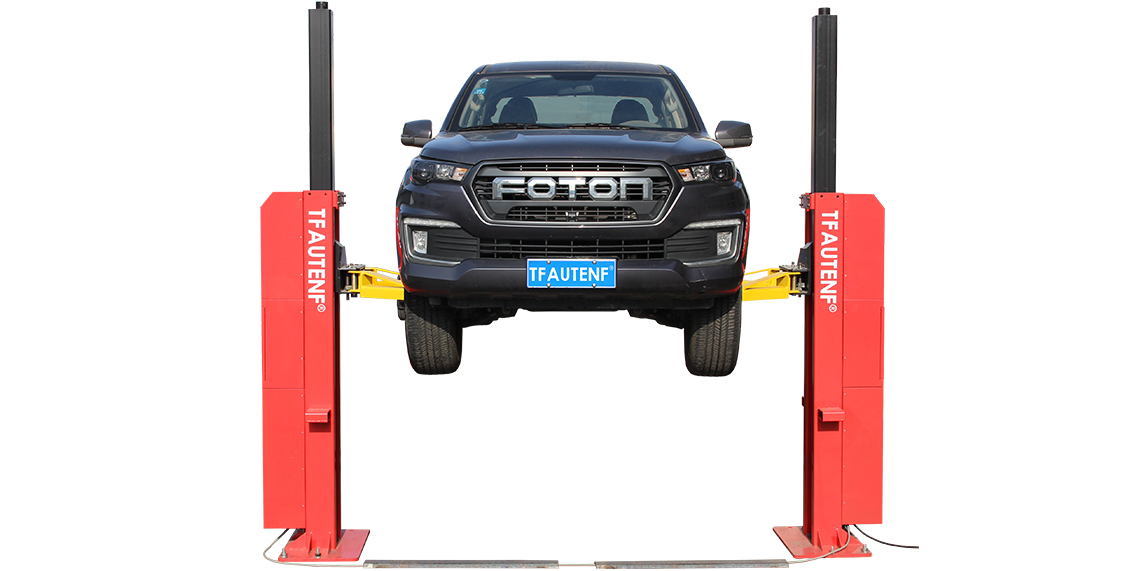

TF-B100 heavy duty two post car lift

Download: PDF


ODM/OEM service available.

Features:
◆ Adjustable wheel support for more kinds of wheels;
◆ Double-safety guaranteed by both hydraulic flow control and mechanical locks;
◆ SCM technology guarantees synchronization;
◆ LCD screen shows the exact lifting height and fault warnings;
◆ Remote control handle with 5meters cable available;
◆ Recommended for medium size vehicle, e.g. SUV, RV, pickup etc.;

Click for its working video.

Specification / Models TF-B100
Column quantity 2
Lifting capacity 10000 kg/set (22046 lb/set)
Lifting stroke 1650 mm (65 in)
Max. lifting height 1870 mm (73.6 in)
Column height 2450 mm (96.5 in)
Fork arm length 784~1124 mm (20~44 in)
Width between columns 2740 mm (107.9 in)
Installation width 3440 mm (135.4 in)
Overall width 3700 mm (145.7 in)
Lifting time 120 s
Falling time 110 s
Power supply 220V/380V
Motor power 2.2 kw
Gross weight 1200 kg (2645 lb)
Column size (fork arm not included) 780×530×2450 mm (30.7x20.9x96.5 in)
Unlock method Electrical unlocking
Note: Due to product improvements design, specifications are subject to change without notice.
