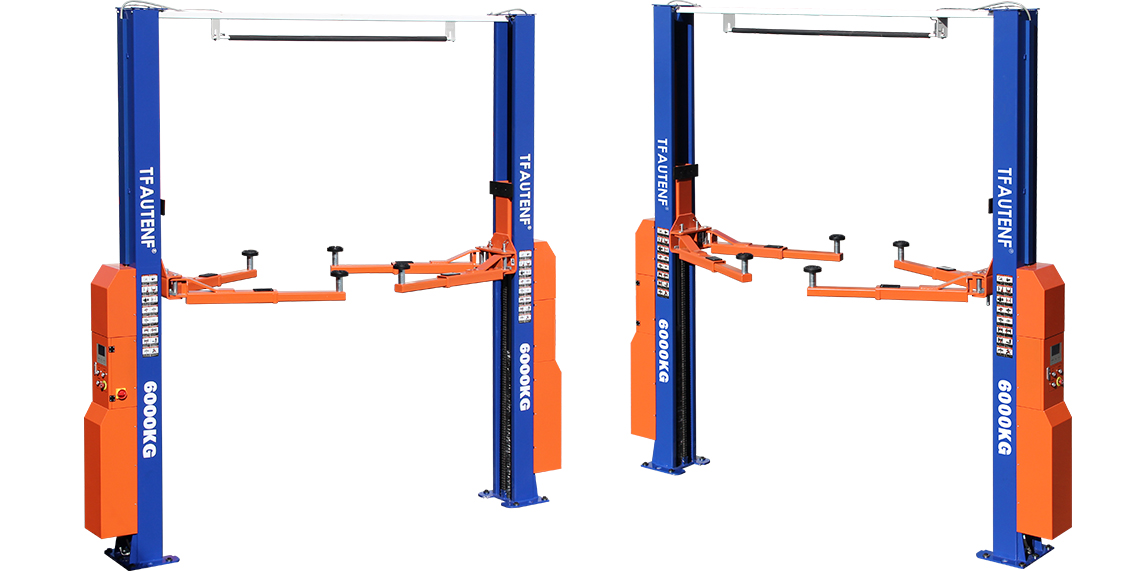

TF-H50E intelligent clear-floor two post car lift

Download: PDF



ODM/OEM service available.

Features：
◆ Double safety guaranteed by both hydraulic flow control and mechanical locks;
◆ SCM technology guarantees synchronization;
◆ LCD screen shows the real-time lifting height, fault warnings and troubleshooting;
◆ Remote control handle with 5meters cable available;
◆ Recommended for medium size vehicle, e.g. SUV, RV, pickup etc.;

Click for its working video: TFAUTENF intelligent clear-floor two post car lift.

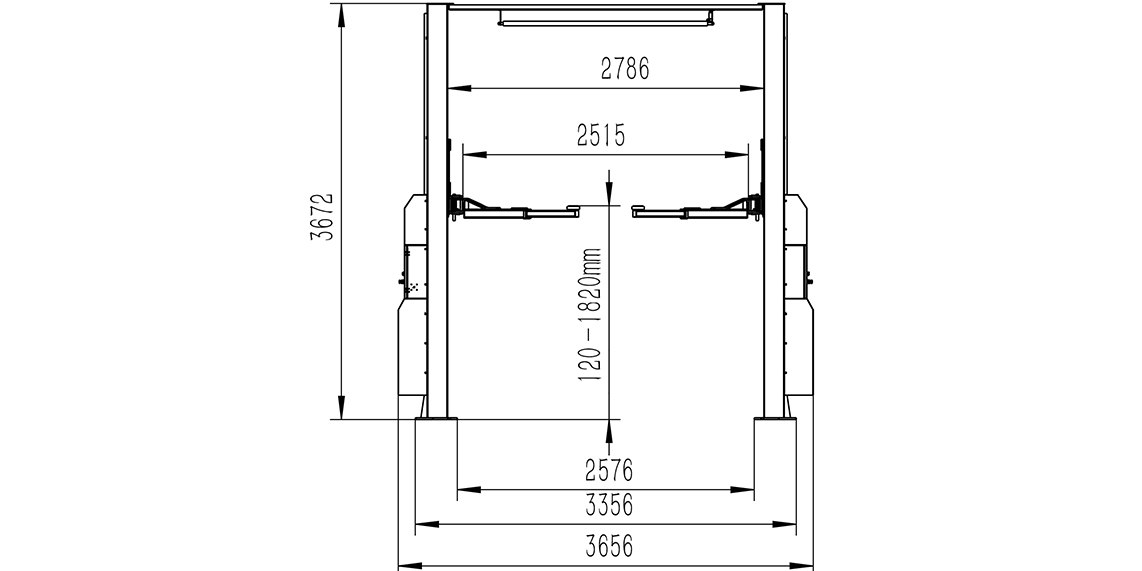

Specification / Models TF-H50E
Product name intelligent two post auto lift for light trucks
Column quantity 2
Lifting capacity 5000 kg/set (11023 lb/set)
Lifting stroke 1700 mm (66.9 in)
Max. lifting height 1820 mm (71.6 in)
Column height 3672 mm (144.5 in)
Fork arm length 700~1100 mm (27.5~43.3 in)
Width between columns 2786 mm (109.7 in)
Overall width 3656 mm (143.9 in)
Power supply 110V/220V/380V
Motor power 4.4 kw
Unlock method Electrical unlocking
Note: Due to product improvements design, specifications are subject to change without notice.
