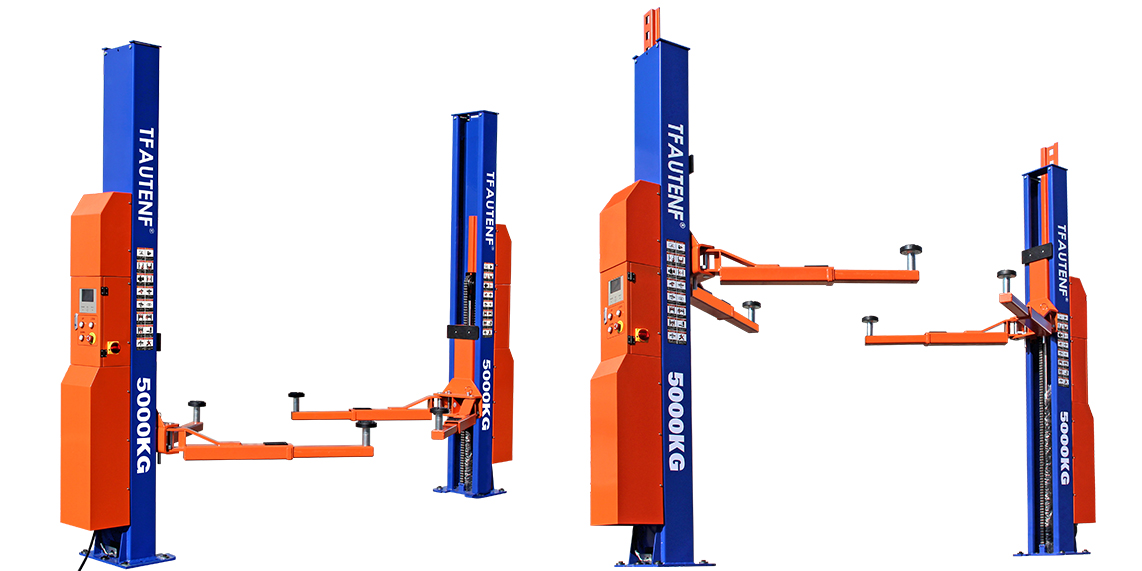

TF-B50E intelligent two post car lift with base plate

Download: PDF

ODM/OEM service available.
Click for its working video: TFAUTENF intelligent two post car lift

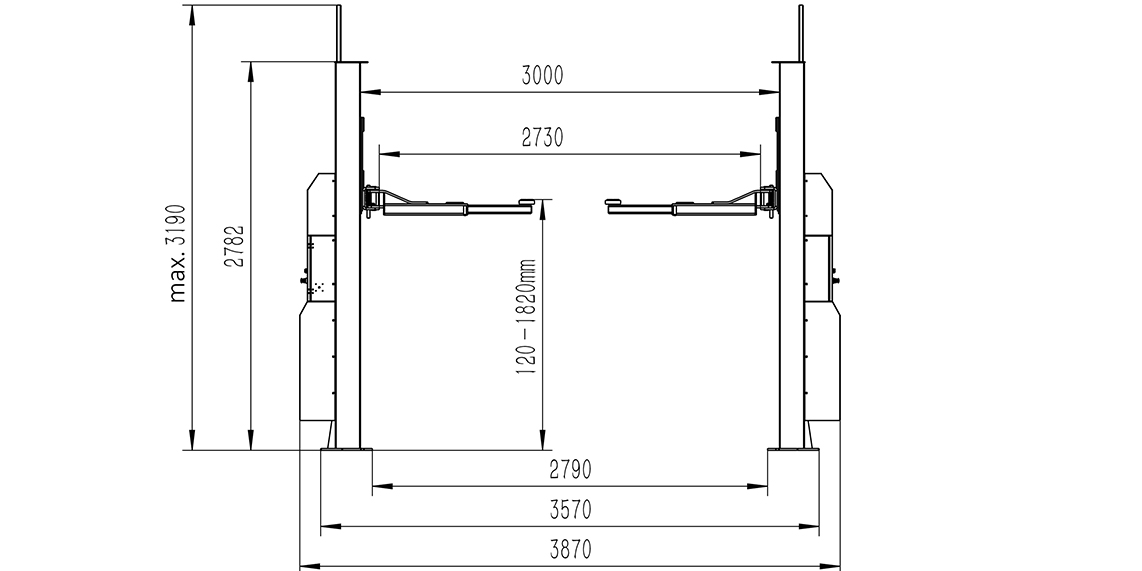

Specification / Models TF-B50E
Product name intelligent two post auto lift for light trucks
Lifting capacity 5000 kg/set (11023 lb/set)
Lifting stroke 1700 mm (66.9 in)
Max. lifting height 1820 mm (71.6 in)
Column height 2782 mm (109.5 in)
Fork arm length 700~1100 mm (27.5~43.3 in)
Width between columns 3000 mm (118 in)
Overall width 3870 mm (152.4 in)
Power supply 110V/220V/380V
Motor power 2 x 2.2 kW
Unlock method Electrical unlocking

1. double safety guaranteed by both hydraulic flow control and mechanical locks;

2. SCM technology guarantees synchronization;

3. LCD screen shows the real-time lifting height, fault warnings and troubleshooting;

4. remote control handle with 5 meters cable available;

5. recommended for medium size vehicles, e.g. SUV, RV, pickup etc.;

6. ISO 9001: 2015 and CE certificated;

: Due to product improvements design, specifications are subject to change without notice.
