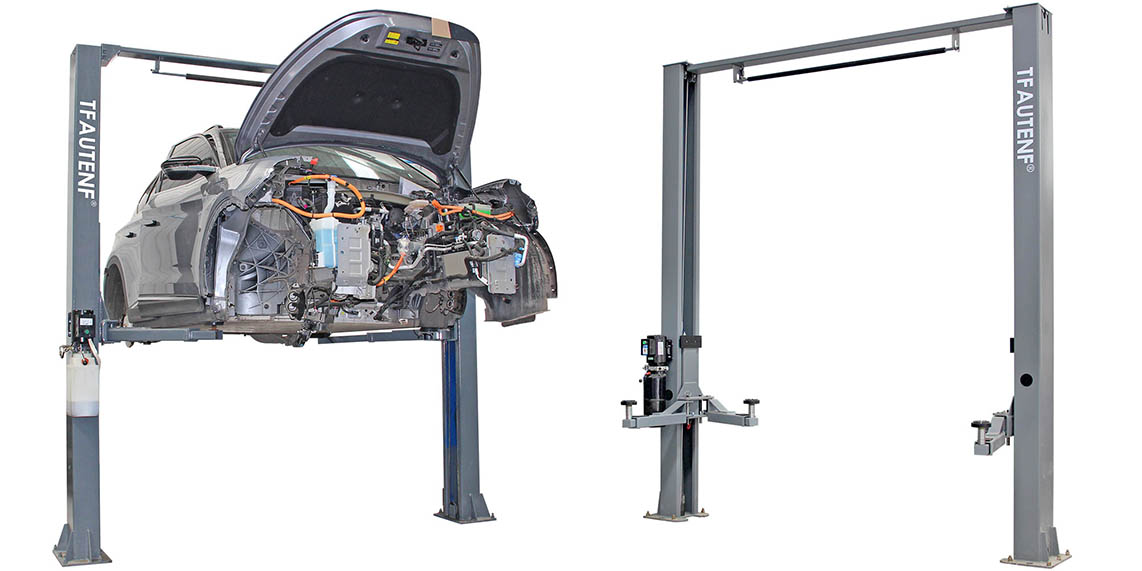

TF-H45 gantry type two post car lift

Download: PDF


ODM/OEM service available.
Click for its working vedio: TFAUTENF car lift

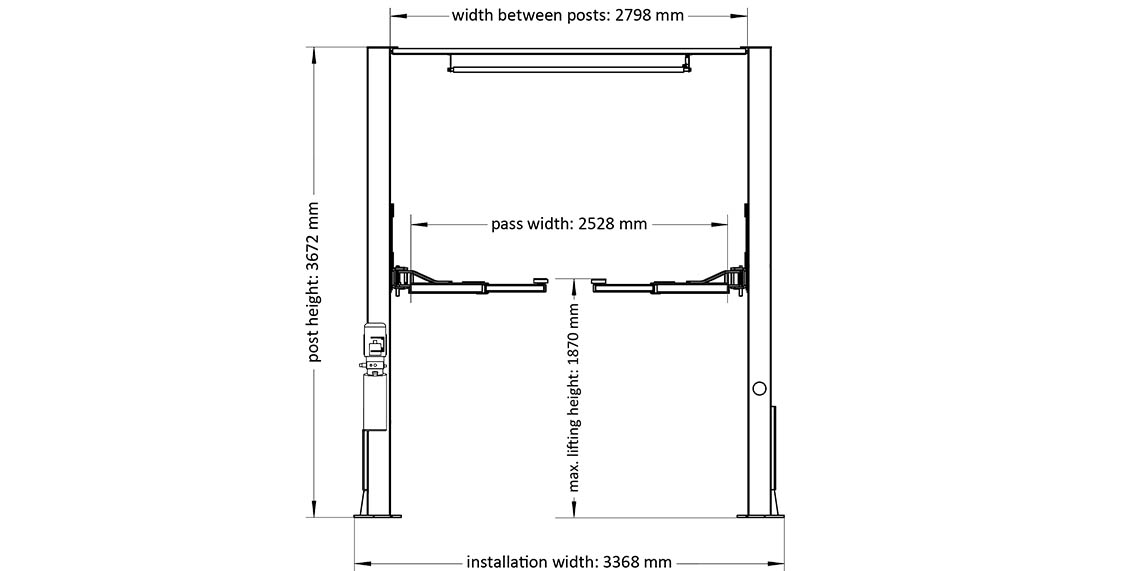

Specification / Models TF-H45
Lifting capacity 4500 kg/set (9920 lb/set)
Lifting stroke 1750 mm (68.9 in)
Max. lifting height 1870 mm (73.6 in)
Min. height 120 mm (4.7 in)
Column height 3672 mm (144.5 in)
Width between columns 2798 mm (110 in)
Max. installation width 3368 mm (132.5 in)
Pass width between two columns 2528 mm (99.5 in)
Length of lifting arm 700~1100 mm (27.5~43.3 in)
Power supply 110V/220V/380V
Motor power 2.2 kW
Unlock method bilateral manual unlocking

1. high quality electric-hydraulic pump, powerful, and low failure rate;

2. clear-floor design with height limit system;

3. dual cylinders located in master and slave column, with high strength chain drives system;

4. special hydraulic system design to avoid overload running;

5. dual anti-skidding safety device to ensure safety of the vehicle;

6. ISO 9001: 2015 and CE certificated;

Note
: Due to product improvements design, specifications are subject to change without notice.
