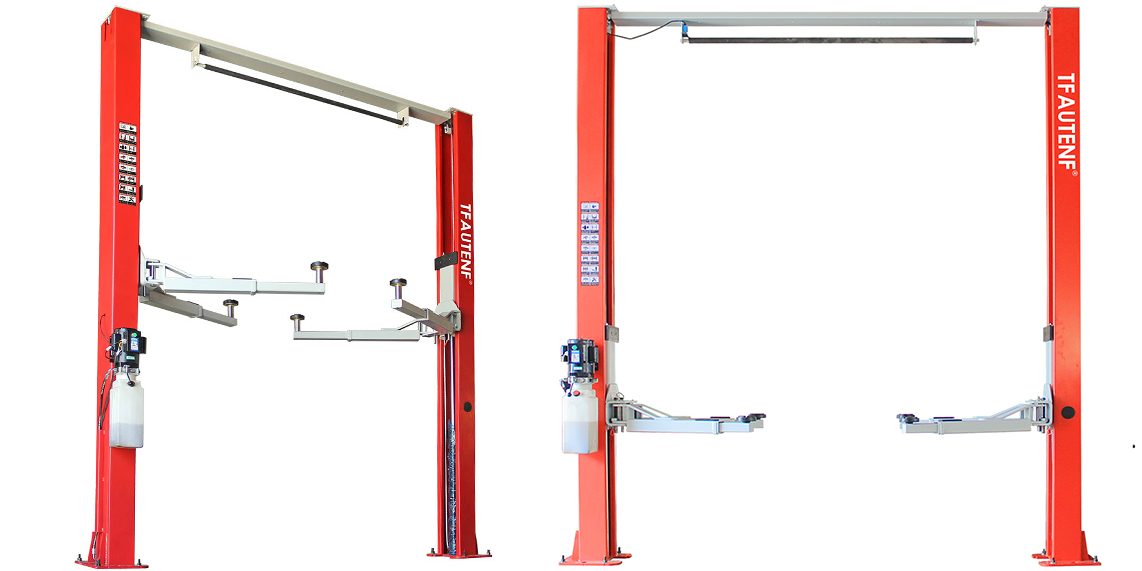

TF-H40 gantry type two post car lift

Download: PDF



ODM/OEM service available.
Click for its working vedio.

Specification / Models TF-H40
Product name overhead two post hydraulic auto lift
Column quantity 2
Lifting capacity 4000 kg/set (8818 lb/set)
Lifting stroke 1750 mm (68.9 in)
Max. lifting height 1870 mm (73.6 in)
Min. height 120 mm (4.7 in)
Column height 3672 mm (144.5 in)
Width between columns 2798 mm (110 in)
Max. installation width 3368 mm (132.5 in)
Pass width between two columns 2528 mm (99.5 in)
Length of lifting arm 700~1100 mm (27.5~43.3 in)
Lifting time 60 s
Falling time 50 s
Power supply 220V/380V
Motor power 2.2 kw
Unlock method Bilateral manual unlocking
Note: Due to product improvements design, specifications are subject to change without notice.
