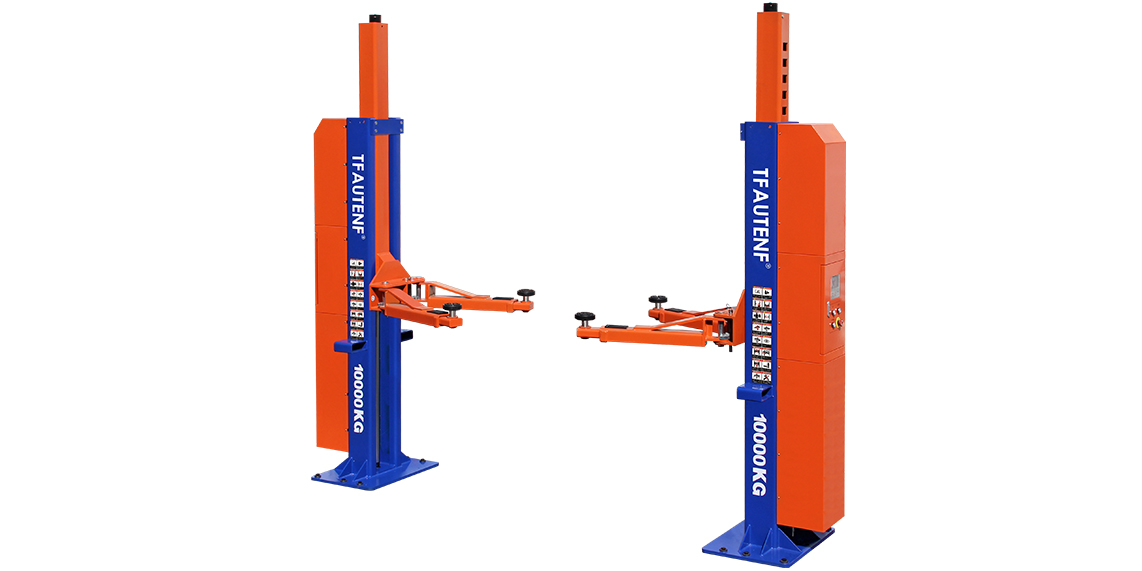

TF-B100 heavy duty two post car lift

Download: PDF


ODM/OEM service available.
Click for its working video: TFAUTENF heavy duty two post car lift

Specification / Models TF-B100
Lifting capacity 10000 kg/set (22046 lb/set)
Lifting stroke 1650 mm (65 in)
Max. lifting height 1870 mm (73.6 in)
Column height 2450 mm (96.5 in)
Fork arm length 784~1124 mm (20~44 in)
Width between columns 2740 mm (107.9 in)
Installation width 3440 mm (135.4 in)
Overall width 3700 mm (145.7 in)
Lifting time 120 s
Falling time 110 s
Power supply 220V/380V
Motor power 2 x 2.2 kW
Gross weight 1200 kg (2645 lb)
Column size (fork arm not included) 780×530×2450 mm (30.7x20.9x96.5 in)
Unlock method Electrical unlocking

1. double safety guaranteed by both hydraulic flow control and mechanical locks;

2. SCM technology guarantees synchronization;

3. LCD screen shows the real-time lifting height, fault warnings and troubleshooting;

4. remote control handle with 5 meters cable available;

5. recommended for medium size vehicles, e.g. SUV, RV, pickup etc.;

6. ISO 9001: 2015 and CE certificated;

Note: Due to product improvements design, specifications are subject to change without notice.
