2.3L air pump

Download: PDF

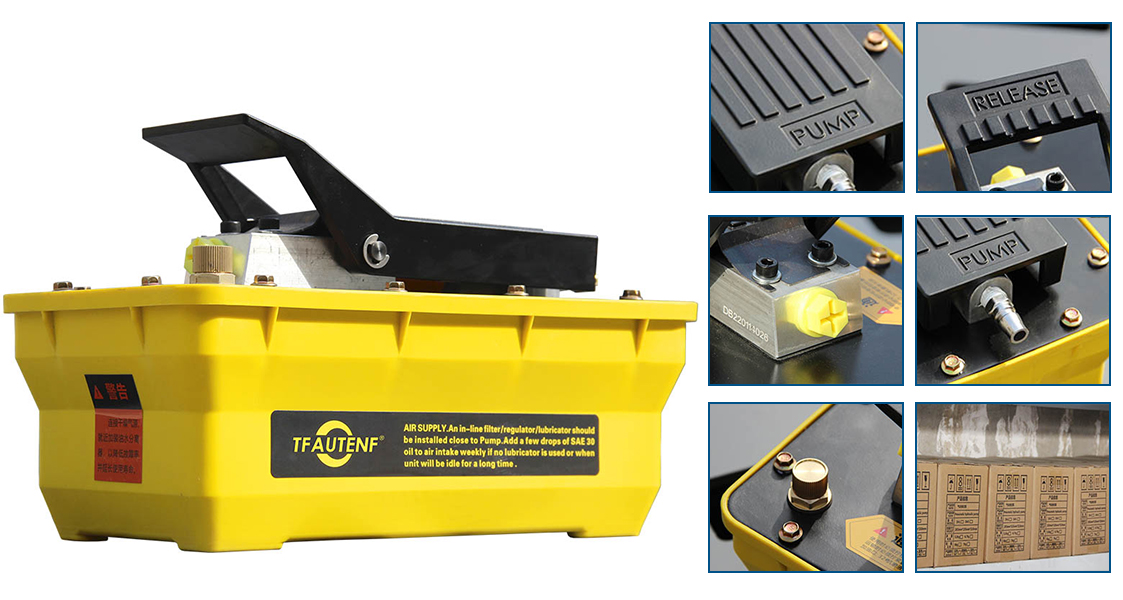

air over hydraulic pump with 2.3 litre reservoir
Product name single speed air hydraulic pump
Definition an air hydraulic pump delivers hydraulic fluid under pressure through the use of compressed air as a power source.
Usage supply power to single acting cylinder
Reservoir material PP modified plastic
Reservoir capacity 3.2 L
Reservoir usable 2.3 L
Oil delivery speed (no load) 0.74~0.94 L/min
Oil delivery speed (with load) 0.098~0.13 L/min
Air pressure (input) 0.27~0.84 mPa
Oil pressure (output) 70 mPa
Air inlet port 1/4" - 18 NPT
Oil outlet port 3/8" - 18 NPT
Pump dimension 318x175x205 mm
Note: Due to product improvements design, specifications are subject to change without notice.
