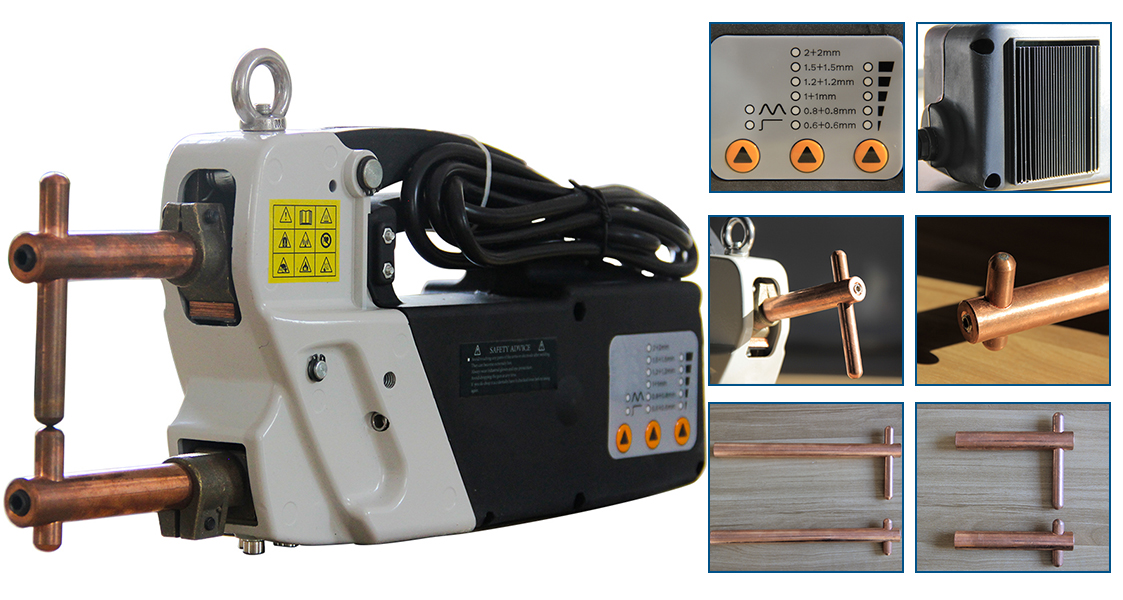

TF-20 spot welder

Download: PDF

spot welder
Click for its working video: TFAUTENF spot welder

Product name spot welder
Rated input voltage 220 V
Power at 50% 2.5 kVA
Max. welding power 14 kVA
No load voltage 2.5 V
Max. short circuit current 6.3 kA
Airborne noise level <70 db (A)
Plug and socket 16/32 A
Delayed mains fuses 25 A
Welding thickness 0.6+0.6 mm~2.0+2.0 mm
Min. rest period between welds 20 s
Max. clamping force 120 kg
projection of arms 120 mm
Gross weight 13 kg
Note: Due to product improvements design, specifications are subject to change without notice.
