TF-15 spot welder

Download: PDF

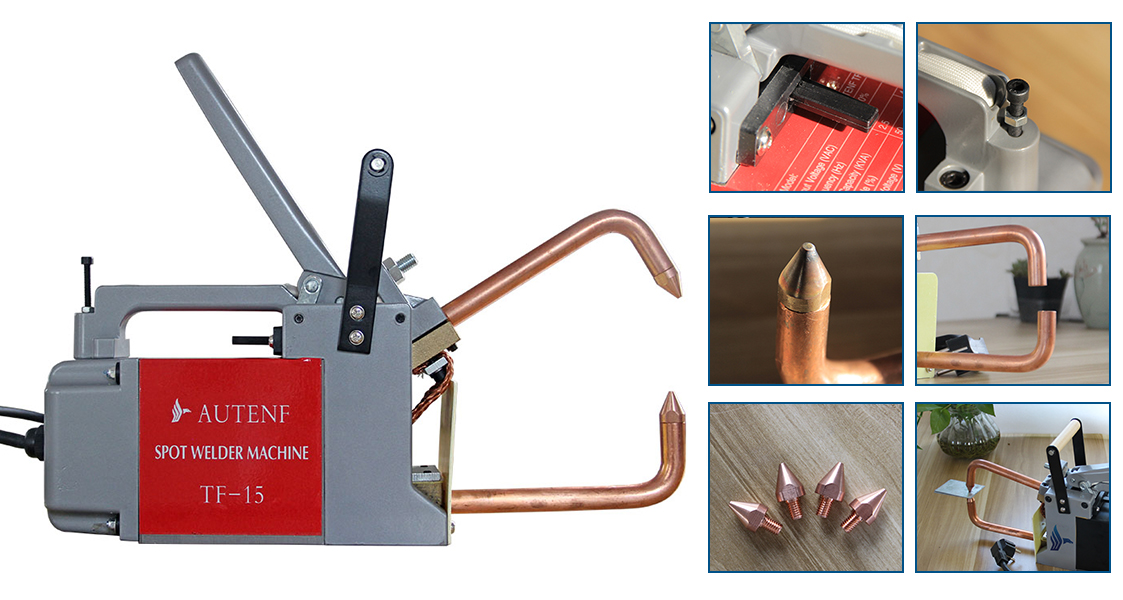

spot welder
Click for its working video: TFAUTENF spot welder

Product name spot welder
Rated input voltage 220 V
Input capacity 2.5 kVA/4.0 kVA
Rated duty cycle 50%/30%
No load voltage 1.6 V
Max. output current <=20 kA
Max. electrode pressure 1780 N
Welding thickness 0.5+0.5 mm~1.5+1.5 mm
Insulation grade H
Gross weight 14 kg
Note: Due to product improvements design, specifications are subject to change without notice.
