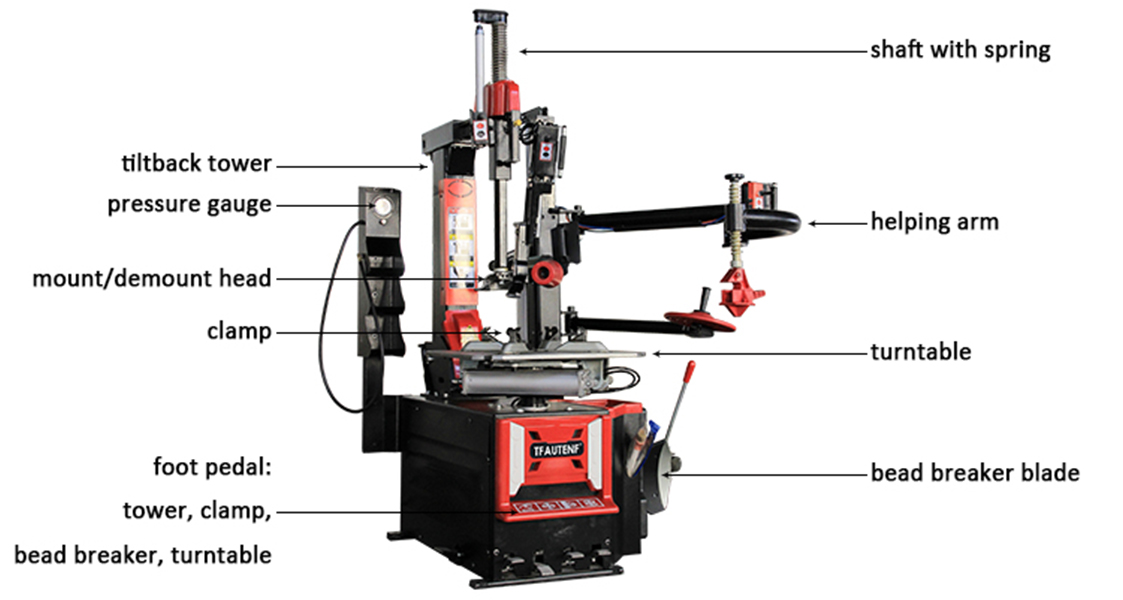

TF-901TC tire changer

Download: PDF



Specification/Models TF-901TC
Product name tire changing machine for low profile tire
Drive system type electric & air
Air requirement 8~10 bar
Wheel clamping 4 clamps (internal & external)
Table clamping dual pneumatic cylinders
Bead breaking pneumatic power
Tower design tilt back
External rim clamp 12~24 in (305~610 mm)
Internal rim clamp 14~26 in (355~660 mm)
Max. wheel diameter 43.3 in (1100 mm)
Max. wheel width 12 in (305 mm)
Working pressure 8~10 bar
Working voltage 110V/220V/38 V
Working power 1.1/0.75 kW
Net weight 334 kg/736 lb
Note: Due to product improvements design, specifications are subject to change without notice
