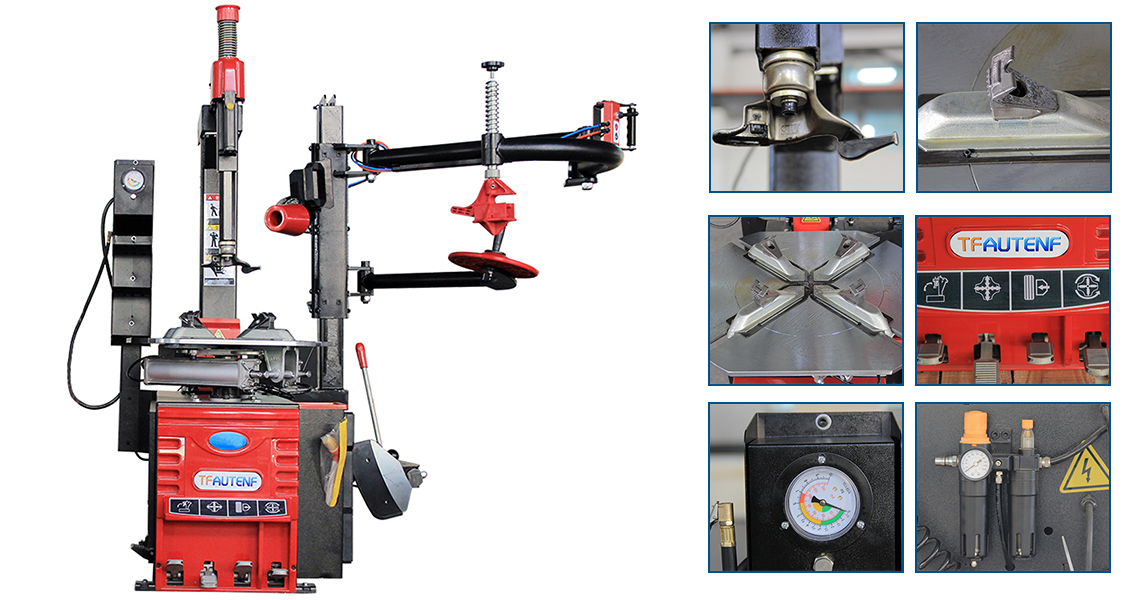

TF-801TC tire changer

Download: PDF

tire changer

Click for operation video: TFAUTENF tire changer

Specification / Models TF-801TC
Product name tire repair machine with optional helping arm
Drive system type electric & air
Air requirement 8~10 bar
Wheel clamping 4 clamps (internal & external)
Table clamping dual pneumatic cylinders
Bead breaking pneumatic power
Tower design tilt back
External rim clamping 10~22 in (254~559 mm)
Internal rim clamping 12~24 in (305~610 mm)
Max. wheel diameter 38.5 in (980 mm)
Max. wheel width 12 in (305 mm)
Working pressure 8~10 bar
Bead breaking cylinder force 2500 kg
Noise <=70 db
Voltage 110V/220V/380V
Power 0.75/1.1 kw
Net weight/gross weight 305/348 kg
Packing dimension 1110x820x980 mm
Note: Due to product improvements design, specifications are subject to change without notice.
