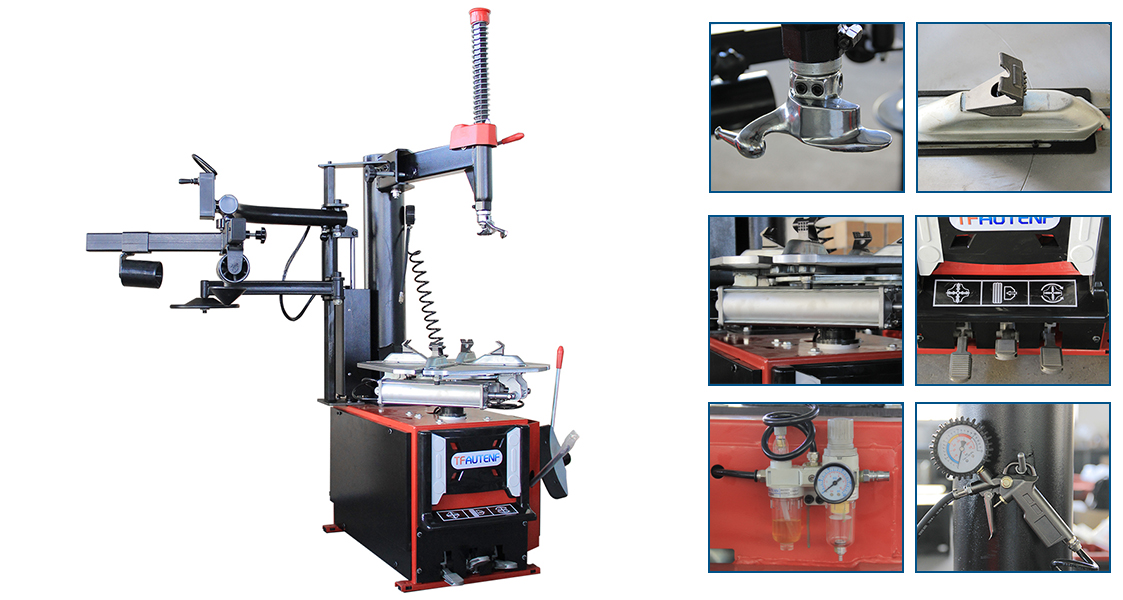

TF-702 tire changer

Download: PDF

tire changer with left-hand swing arm

Specification / Models TF-702TC
Drive system type electric & air
Air requirement 8~10 bar
Wheel clamping 4 clamps (internal & external)
Table clamping dual pneumatic cylinders
Bead breaking pneumatic power
External rim clamping 10~22 in (254~559 mm)
Internal rim clamping 12~24 in (305~610 mm)
Maximum wheel diameter 38.5 in (980 mm)
Maximum wheel width 12 in (305 mm)
Bead vreaking cylinder force 2500 kg
Noise < 70db
Working voltage 110V/220V/380V
Working power 1.1 KW/0.75KW
Net weight/gross weight 208/239 kg
Packing dimension 1120x900x930 mm
Note: Due to product improvements design, specifications are subject to change without notice.
