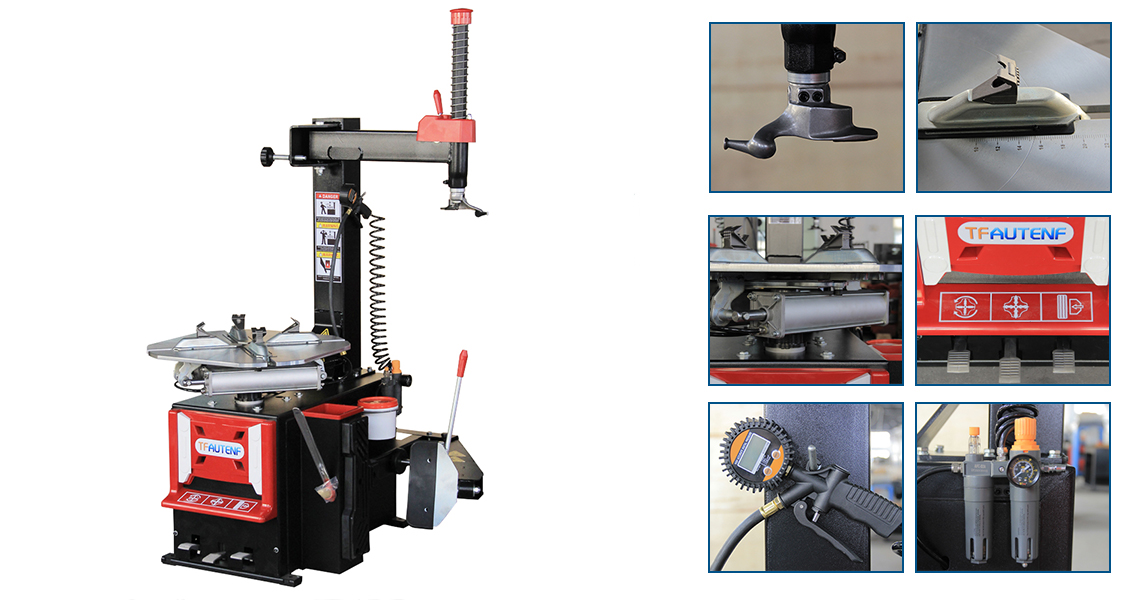

TF-601TC tire changer

Download: PDF

tire changer
Click for its working video: TFAUTENF tire changer

Specification / Models TF-601TC
Product name tire repair machine
Drive system type electric & air
Air requirement 8~10 bar
Wheel clamping 4 clamps (internal & external)
Table clamping dual pneumatic cylinders
Bead breakind pneumatic power
External rim clamping 10~22 in (254~559 mm)
Internal rim clamping 12~24 in (305~610 mm)
Max. wheel diameter 38.5 in (980 mm)
Max. wheel width 12 in (305 mm)
Bead breaking cylinder force 2500 kg
Noise <=70 db
Voltage 110V/220V/380V
Power 0.75/1.1 kw
Net weight/gross weight 195/225 kg
Packing dimension 1120x920x910 mm
Note: Due to product improvements design, specifications are subject to change without notice.
