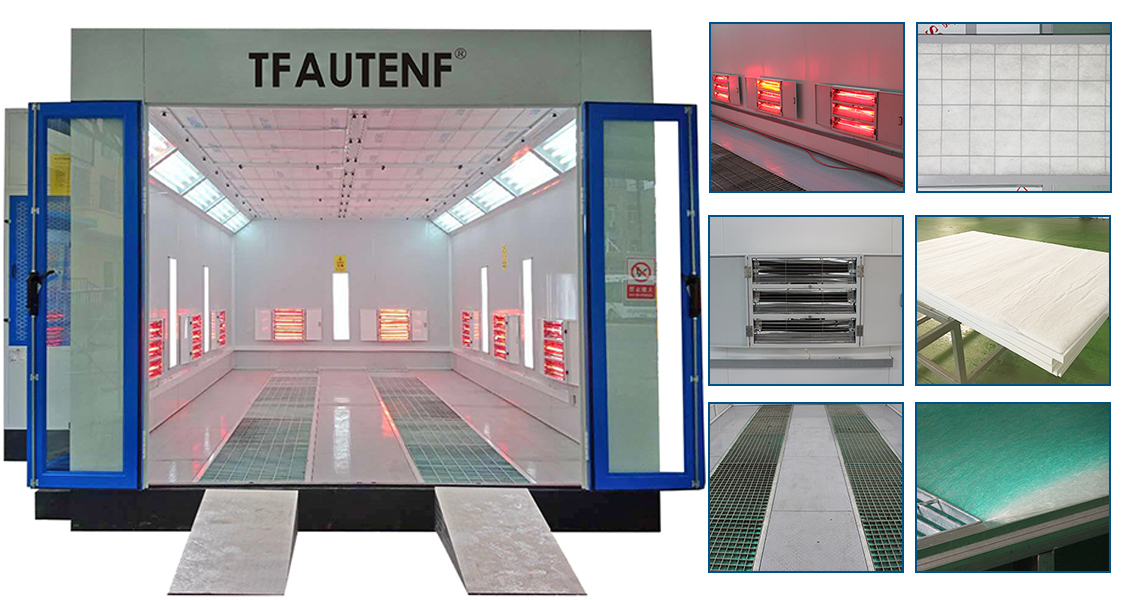

TF-ES2 Electric heating spray booth

Download: PDF


Parameter
Outside size 7000 × 5350 × 3400 mm (L×W×H)
Inside size 6900 × 3900 × 2650 mm (L×W×H)
Entrance door 3 folds, 3000 × 2600 mm, aluminum alloy covered frame, with handle & lock
Emergency door 650 × 1800 mm ×1 fold, with handle and anti-explosion lock
Specification
Cabin system wall panel 50 mm EPS panel + 0.376 mm steel plate
  basement - galvanized steel assemble, full metal foundation
- 2 rows of galvanized steel grills+3 rows of galvanized diamond plate, 300 mm height
- diamond plate ramp, 2000 mm × 620 mm × 2 pc
Ventilation system inlet fan 2 × 4KW YDW 4.5M1 centrifugal fans, total air capacity: 25000 m3/h/set
  outlet fan optional
Heating system 1KW × 3 pc × 10 units infrared lamps for heating
Lighting system ceiling light LED lights: 16W × 24 pc
  side light optional
Filtering system primary filter to filter granules > 10μm, filtering rate > 83%
  ceiling filter to filter granules > 4μm, filtering rate > 98%
Control system lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage 380V, 50Hz, 3 phase
Working power 45 KW+
Note: Due to product improvements design, specifications are subject to change without notice.
