TF-ES1 electric-heating spray booth

Download: PDF

Electric heating spray booth

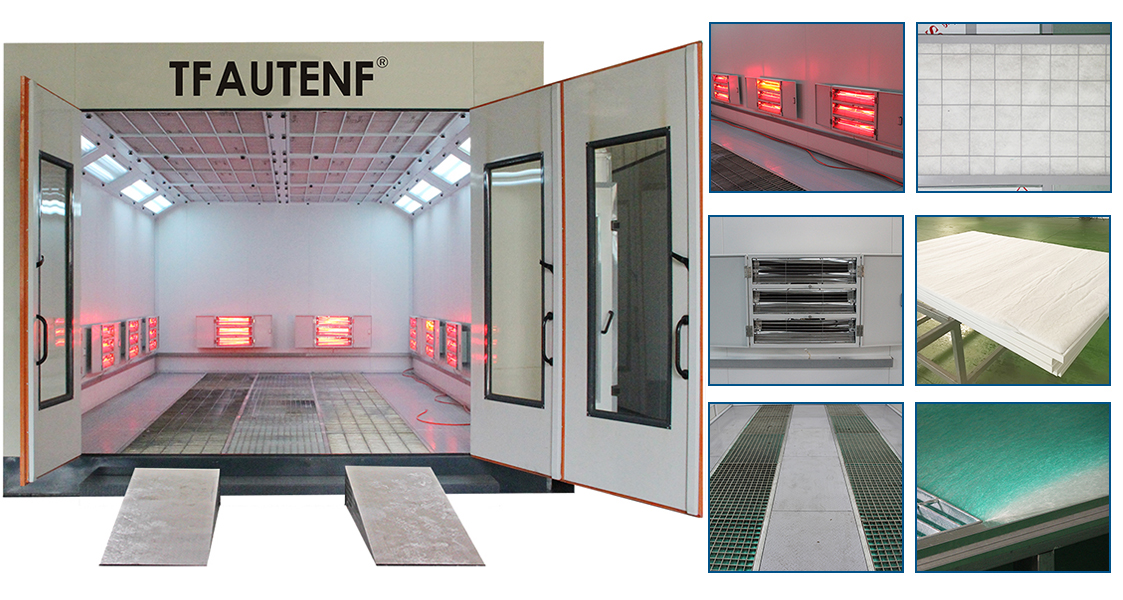

Note: the picture is for reference only. Please contact us to confirm specifications. All TFAUTENF electrical heating spray booth is customizable.
Parameter
Outside size 7050 × 5050 × 3200 mm (L×W×H)
Inside size 6900 × 3900 × 2600 mm (L×W×H)
Entrance door 3 folds, 3000 × 2500 mm, alluminum alloy covered frame, equipment with handle & lock
Emergency door 600 × 2000 mm ×1 fold, with handle and anti-explosion lock
Specification
Cabin system wall panel 50 mm EPS panel + 0.33 mm steel plate
  basement - plate type pressing convex platform, 300 mm height, 5 rows of galvanized steel grills
- diamond plate ramp, 2000 mm × 620 mm × 2 pc
Ventilation system inlet fan 2 × 4KW YDW centrifugal fans, total air capacity: 25000 m3/h/set
  outlet fan optional
Heating system 1KW × 3 pc × 8 units infrared lamps for heating
Lighting system ceiling light LED lights: 16W × 24 pc
  side light optional
Filtering system primary filter to filter granules > 10μm, filtering rate > 83%
  ceiling filter to filter granules > 4μm, filtering rate > 98%
Control system lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage 380V, 50Hz/60Hz, 3 phase
Working power 33 KW+
Note: Due to product improvements design, specifications are subject to change without notice.
