TF-GSB1 spray booth for commercial vehicle

Download: PDF

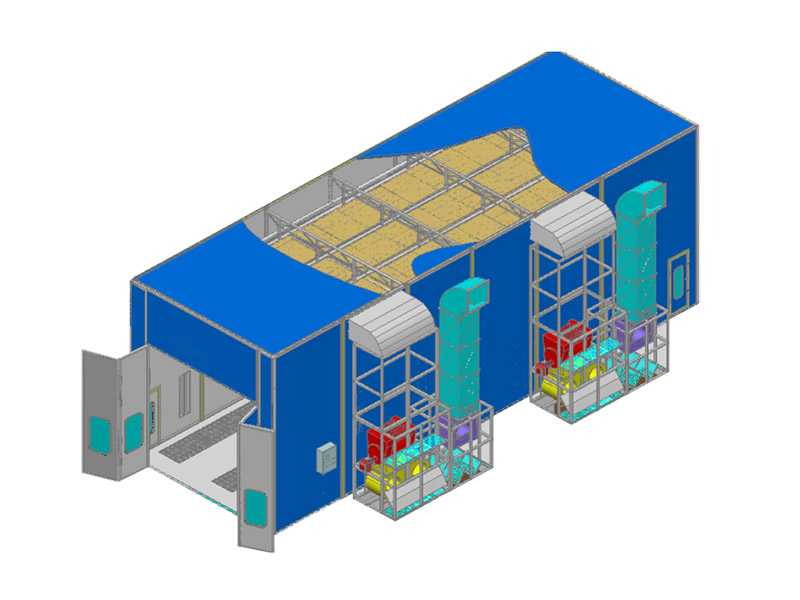

heavy duty spray booth for commercial vehicle
Note: the picture is for reference only. Please contact us to confirm specifications. All TFAUTENF auto paint booths are customizable.
Outside size 11150 × 7600 × 6000 mm (L×W×H)
Inside size 11000 × 6100 × 5000 mm (L×W×H)
Entrance door 3 folds, 2000 × 2000 mm
Emergency door 650 × 1800 mm ×1 fold, with handle lock
Cabin system wall panel 75 mm rock wool + 0.5 mm steel plate
  basement - 5 rows of galvanized steel grills+2 rows of indented plates, 300 mm height
- diamond plate ramp, 2000 mm × 970 mm × 3 pc
Ventilation system inlet fan 4 × 5.5KW YDW-5.6M centrifugal fans, air capacity: 20000 m3/h/set
  outlet fan 1 × 11KW turbo fan, 1 × 15 KW, air capacity: 27000 m3/h/set
  airflow speed 0.4 m/s, ventilation rate: 320 time/h
Heating system burner Italy RIELLO burner, heating capacity: 270000 Kcal/h, with BELIMO 10 N electric damper
  heat exchanger SUS304 stainless steel
Lighting system ceiling light LED lights: 36W × 16 units, >=700 LUX
  side light LED lights: 36W × 12 units, >=700 LUX
Filtering system primary filter grade G2 plate type, filtering rate > 83%
  ceiling filter EU5 grade high efficient filter, filtering rate > 98%
  floor filter multi layer fiberglass filter, filtering rate > 70%
Control system lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage 240V, 50Hz, 3 phase
Working power 64 KW
Note: Due to product improvements design, specifications are subject to change without notice.
