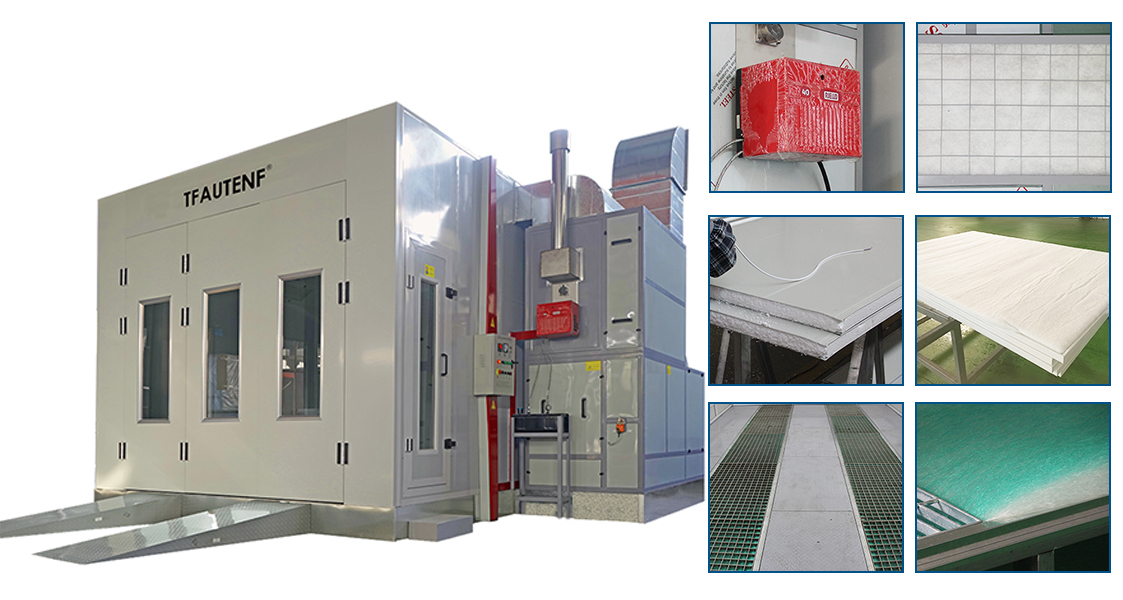

TF-CSB3 Diesel heating spray booth

Download: PDF


Parameter
Outside size 7000 × 5350 × 3400 mm (L×W×H)
Inside size 6900 × 3900 × 2650 mm (L×W×H)
Entrance door 3 folds, 3000 × 2600 mm, bending steel without covered frame
Emergency door 650 × 1800 mm, with handle lock
Specification
Cabin system wall panel 50 mm EPS panel + 0.426 mm steel plate
  basement - galvanized steel assemble, 300 mm height, quadrate steel support, 5 rows of grills
- 2 ramps, external setting, 2000 mm × 900 mm each
Ventilation system inlet fan 2 × 3 KW YDW 4.55 centrifugal fans, air capacity: 12500 m3/h/set
  outlet fan 1 × 5.5KW YDW 4.55 centrifugal fans, air capacity: 16000 m3/h/set
  airflow speed 0.35 m/s, ventilation rate: 280 time/h
Heating system burner Italy RIELLO G20 diesel burner, heating capacity: 200000 Kcal/h
  heat exchanger 1.2 mm thickness SUS 304 stainless steel
Lighting system ceiling light LED lights: 16W × 32 pc
  side light LED lights: 16W × 16 pc
Filtering system primary filter grade G2 plate type, filtering rate > 83%
  ceiling filter EU5 grade high efficient filter, filtering rate > 98%
  floor filter multi layer fiberglass, filtering rate > 70%
Control system lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage 380V, 50Hz, 3 phase
Working power 15 KW+
Note: Due to product improvements design, specifications are subject to change without notice.
