TF-CSB2 diesel-heating spray booth

Download: PDF

Diesel heating spray booth

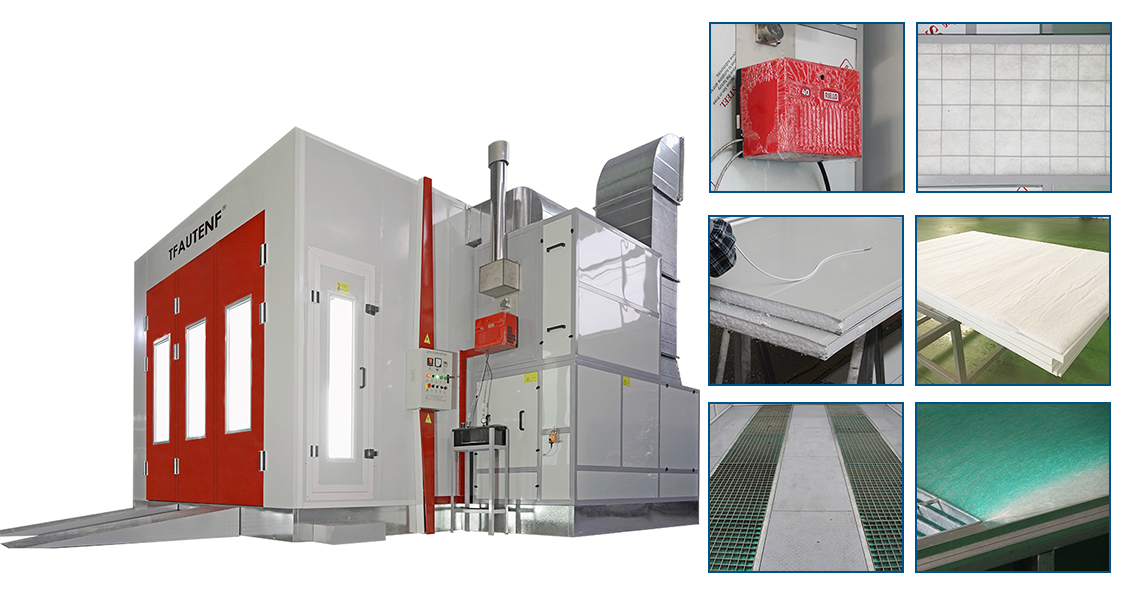

Note: the picture is for reference only. Please contact us to confirm specifications. All TFAUTENF diesel heating spray booth is customizable.
Outside size 7050 × 5250 × 3200 mm (L×W×H)
Inside size 6900 × 3900 × 2600 mm (L×W×H)
Entrance door 3 folds, 3000 × 2500 mm, aluminum alloy covered frame
Emergency door 650 × 2000 mm, with handle lock
Cabin system wall panel 50 mm EPS panel + 0.35 mm steel plate
  basement - plate type pressing convex platform, 280 mm high, quadrate steel support, 5 rows of grills
- 2 ramps, 620 x 2000 mm/pc, diamond plate construction
Ventilation system inlet fan 2 × 3 KW YDW centrifugal fans, total air capacity: 21000 m3/h
  outlet fan 1 × 5.5 KW YDW centrifugal fans, total air capacity: 12500 m3/h
  airflow speed 0.4 m/s, ventilation rate: 315 time/h
Heating system burner Italy RIELLO G10 diesel burner, heating capacity: 100000 Kcal/h
  heat exchanger 1.2 mm thickness SUS 304 stainless steel
Lighting system ceiling light LED lights: 16W × 24 pc
  side light optional
Filtering system primary filter capture granules later than 10 μm, filtering rate > 83%
  ceiling filter capture granules later than 4 μm, filtering rate > 98%
Control system lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage 380V, 50Hz, 3 phase
Working power 11 KW
Note: Due to product improvements design, specifications are subject to change without notice.
