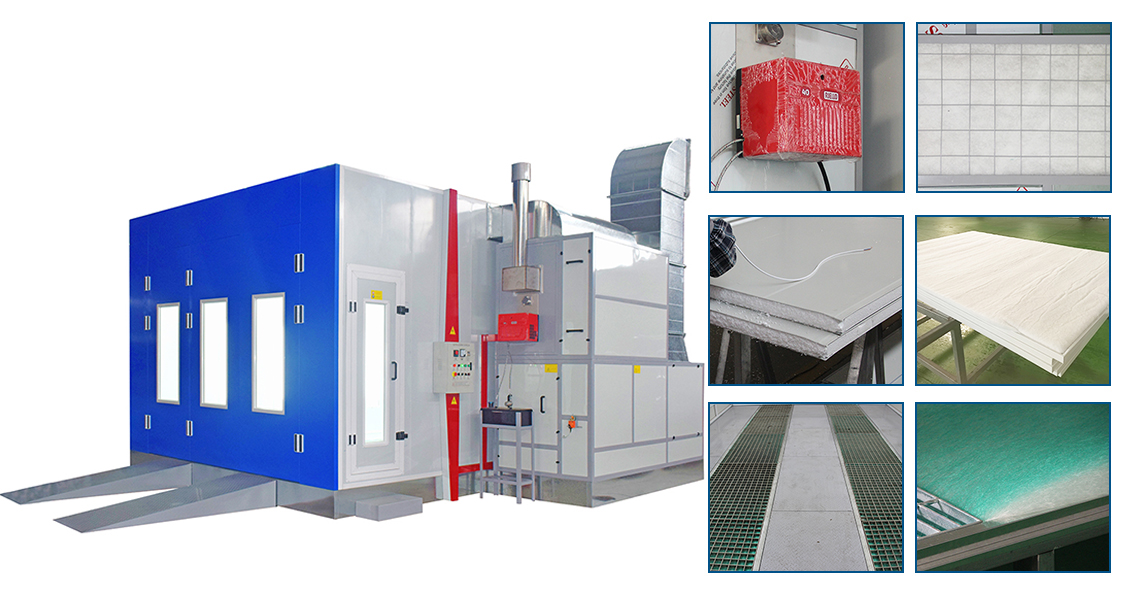

TF-CSB1 Diesel heating spray booth

Download: PDF

Outside size 7000 × 5350 × 3400 mm (L×W×H)
Inside size 6900 × 3900 × 2650 mm (L×W×H)
Entrance door 3 folds, 3000 × 2600 mm, aluminum alloy covered frame
Emergency door 650 × 1800 mm, with handle lock
Cabin system wall panel 50 mm EPS panel + 0.376 mm galvanized steel plate
  basement galvanized steel assemble, 3 rows of indented plates
Ventilation system inlet fan 2 × 4 KW YDW centrifugal fans, air capacity: 12500 m3/h each
  outlet fan optional
  airflow speed 0.35 m/s, ventilation rate: 280 time/h
Heating system burner Italy RIELLO G20 diesel burner, heating capacity: 200000 Kcal/h
  heat exchanger 1.2 mm thickness SUS 304 stainless steel
  cabinet rock-wool insulation x 1 unit
Lighting system ceiling light LED lights: 16W × 24 pc
  side light optional
Filtering system primary filter Grade G2 plate type, filtering rage>83%
  ceiling filter EU5 grade high efficient filter, filtering rate>98%
  floor filter multi-layer fiberglass, filtering rate>70% (optional)
Control system control panel intelligent control system
  function lighting, spraying, heating, temperature controller, time setting, emergency stop, etc.
Working voltage 380V, 50Hz, 3 phase
Working power 9.5 KW
Note: Due to product improvements design, specifications are subject to change without notice.
