TF-NA1 nano-heating spray booth

Download: PDF

car spray booth

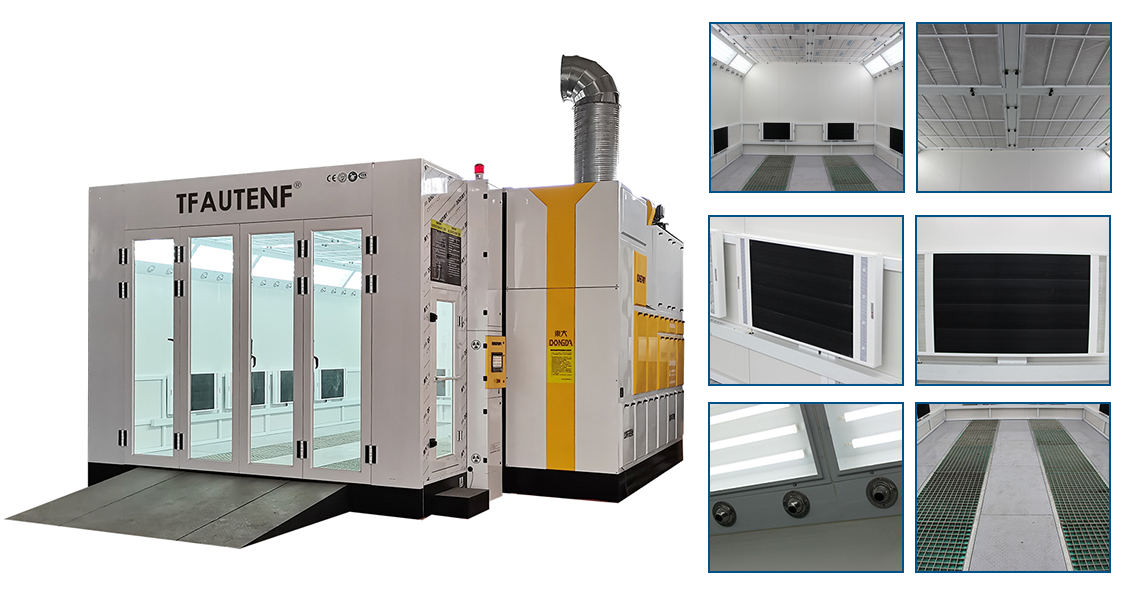

Note: the picture is for reference only. Please contact us to confirm specifications. All TFAUTENF car spray booths are customizable.
Outside size 7000 × 5400 × 3400 mm (L×W×H)
Inside size 6900 × 3900 × 2650 mm (L×W×H)
Entrance door 4 folds, 3000 × 2600 mm (W x H)
Emergency door 1 fold, 700 × 1800 mm, with anti-explosion lock
Cabin system wall panel 50 mm rock wool + 0.5 mm color-steel plate
  basement - 2 rows of steel grill + 3 rows of diamond plate floor
- galvanized steel + galvanized steel tube, 300 mm height
Ventilation system inlet fan 1 × 7.5 kW
  extra inlet fan 2 × 0.55 kW for water soluble paint
  outlet fan 1 × 11 kW
Heating system nano heating, 3kW x 10 units
Lighting system ceiling light LED lights: 24 W × 4 pc × 10 units, >=1000 lux
Filtering system primary filter to filter granules > 10μm
  ceiling filter to filter granules > 4μm, filtering rate >= 99%
Control system PLC programming, touch screen, earth leakage protecion, over temperature alarm, missing item protection, thermal overload protection, time setting, temperature setting, painting, heating, lighting, power supply, emergency stop, etc.
Working voltage 380V, 50Hz, 3 phase
Painting power 30 kW
Heating power 30 kW
