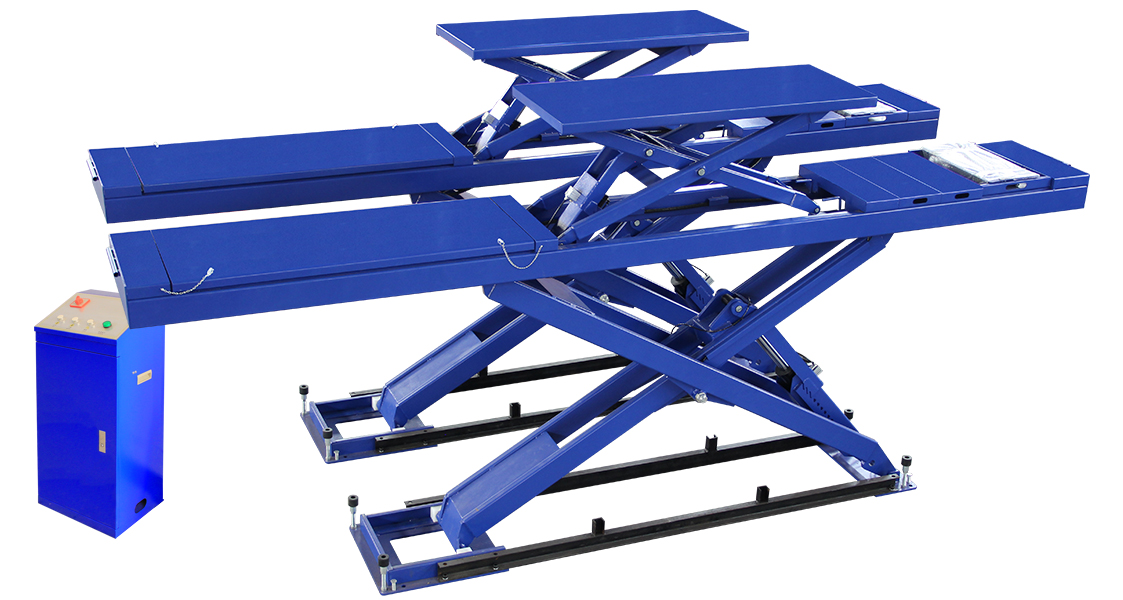

Model name	TF-USL4000B-M
Lifting capacity	4000 kg
Max. lifting height	1800 mm
Min. lifting height	360 mm
Lifting capacity of brige jack	2000 kg
Lifting height of bridge jack	470 mm
Platform length	4500 mm
Width of single runway	600 mm
Unlocking system	pneumatic unlocking system
Working voltage	110V/220V/380V

1. high quality electric-hydraulic pump, DC 24V operation voltage, safe, powerful, and low failure rate;

2. double-scissor design allows twice lifting, smarter and more convenient;

3. pneumatic locking system allows slow descent in case of emergency;

4. double-cylinder design makes the lift safe, fast and steady;

5. design of removable board and sliding plate allows the lift to work as wheel-alignment lift;

6. ISO 9001: 2015 and CE certificated;

Note: Due to product improvements design, specifications are subject to change without notice.
