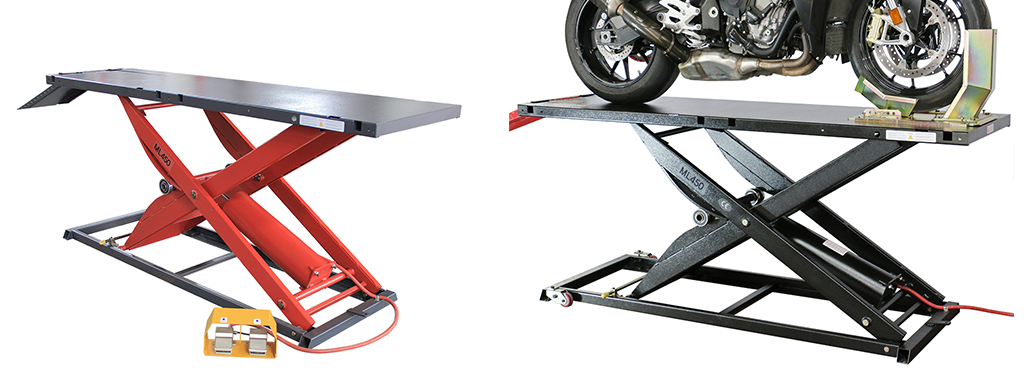

TF-MS450 Pneumatic Motorcycle Scissor Lift

Download: PDF


Click for its working video.

Specifications/Model TF-MS450
Product name motorcycle scissor lift
Lifting capacity 1000 lb/450 kg
Max. lifting height 35"/900 mm
Min. height 7.25"/185 mm
Platform size 84"x24"/2130mmx610mm
Ramp size 29"x11.8"/735mmx300mm
Gross weight 330lb/150kg
Power unit pneumatic pump

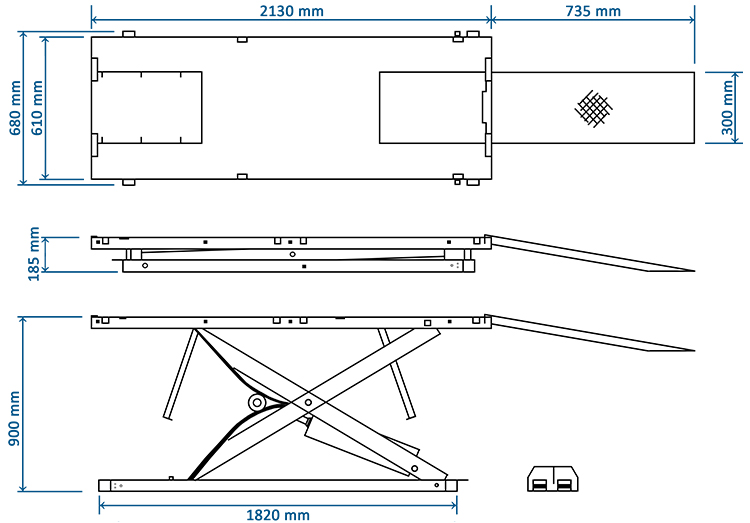

Drawings for reference

Note: Due to product improvements design, specifications are subject to change without notice.
