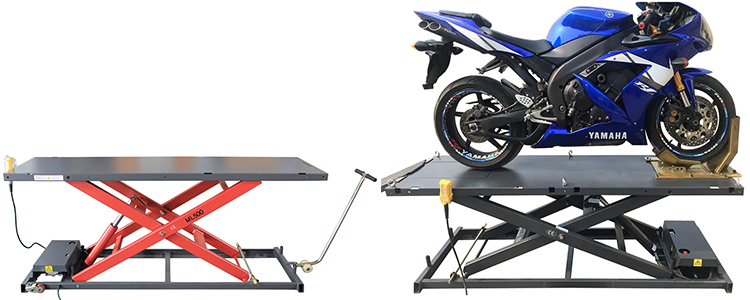

TF-MS500 Hydraulic Motorcycle Scissor Lift

Download: PDF


Click for its working video.

Specifications/Model TF-MS500
Product name motorcycle scissor lift
Lifting capacity 1100 lb/500 kg
Max. lifting height 40"/1000 mm
Min. height 7.25"/185 mm
Platform size 84"x24"/2130mmx610mm
Ramp size 29"x11.8"/735mmx300mm
Gross weight 380lb/170kg
Power unit electric-hydraylic

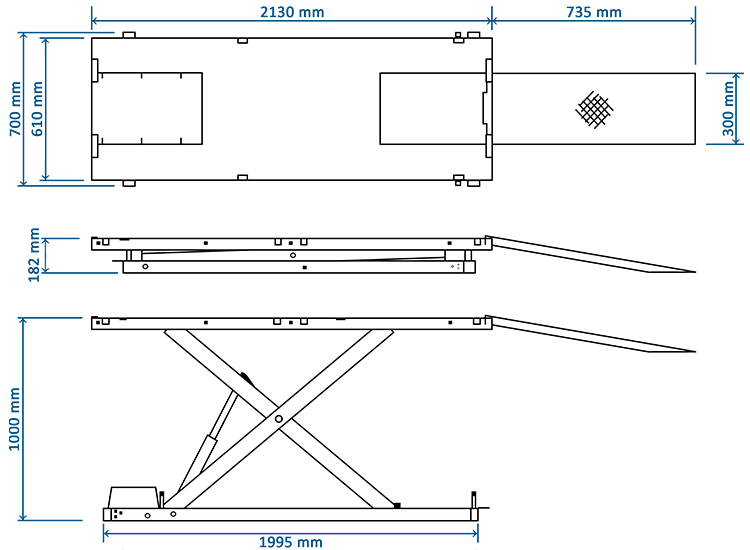

Drawings for reference

Note: Due to product improvements design, specifications are subject to change without notice.
