TF-MS800 Pneumatic Motorcycle Scissor Lift

Download: PDF

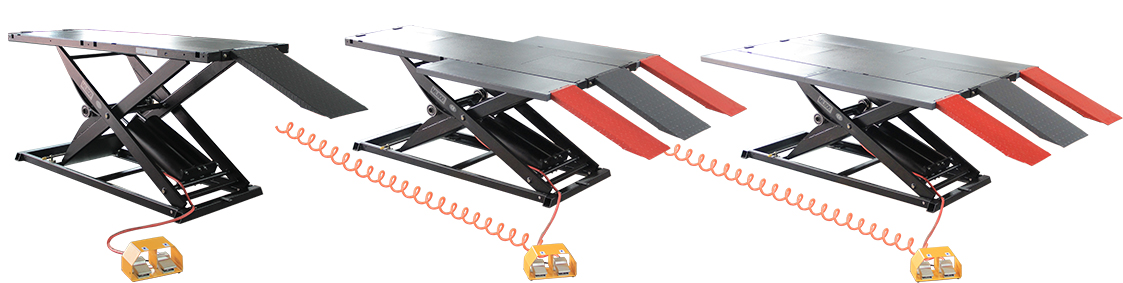

Left: TF-MS800 motorcycle scissor lift with no side panel
Middle: TF-MS800 motorcycle scissor lift with two side panels
Right: TF-MS800 motorcycle scissor lift with four side panels

Click for its working video.

Specifications/Model TF-MS800
Product name Motorcycle scissor lift
Lifting capacity 1750 lb/800 kg
Max. lifting height 40"/1000 mm
Min. height 8.5"/215 mm
Platform size 86.5"x29.5"/2200mmx750mm
Ramp size 45"x15"/1142mmx380mm
Gross weight 500lb/220kg
Power unit pneumatic pump

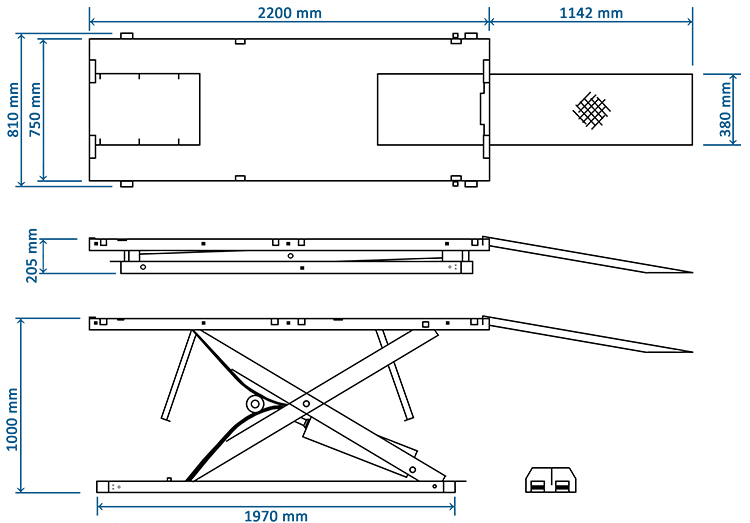

Drawings for reference

Note: Due to product improvements design, specifications are subject to change without notice.
