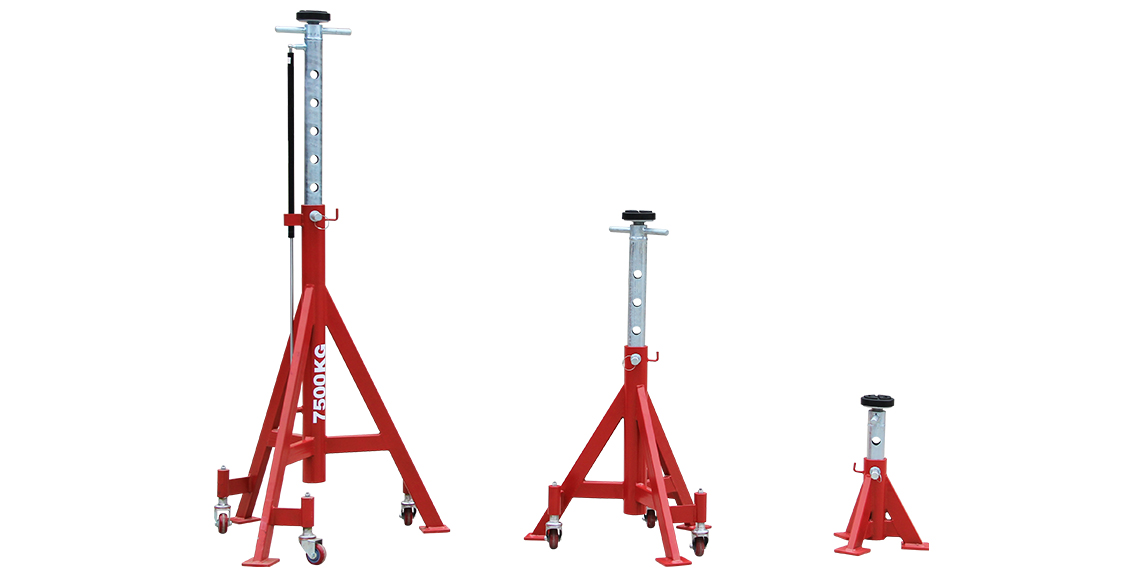

mechanical jack stand

Download: PDF


Click for its working video: TFAUTENF jack stand.

Model name TF-75-20JS TF-75-12JS TF-75-05JS
Lifting capacity 7500 kg/pc (16534 lb/pc) 7500 kg/pc (16534 lb/pc) 7500 kg/pc (16534 lb/pc)

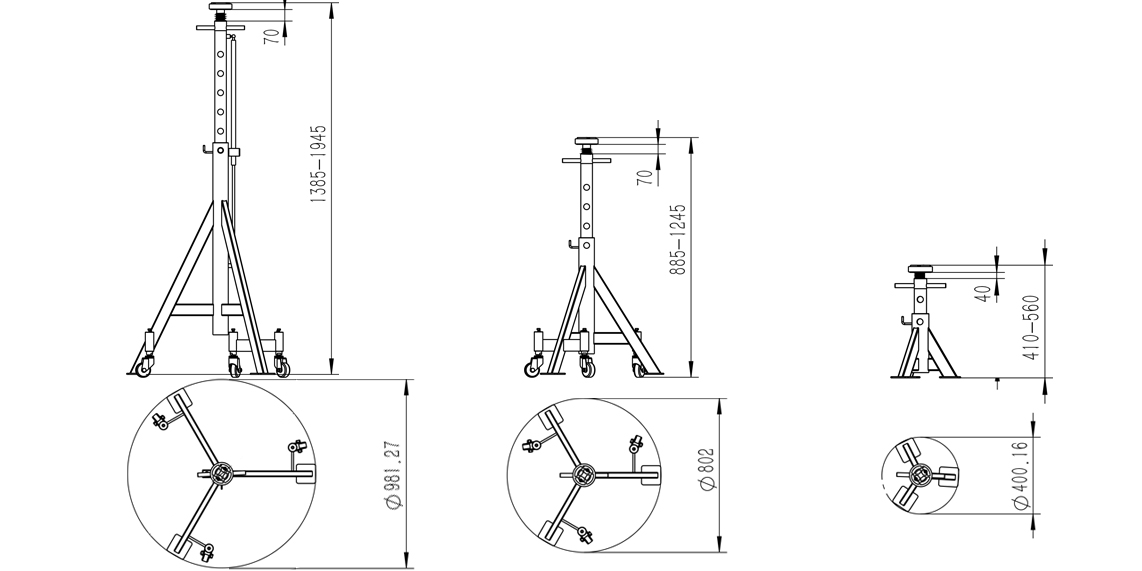

Lifting height 1385~1945 mm (54.5~76.5 in) 885~1245 mm (34.8~49.0 in) 410~560 mm (16.1~22.0 in)
Height adjustment method pin locking with screw fine adjustment pin locking with screw fine adjustment pin locking with screw fine adjustment
Moving method swivel casors swivel casors no swivel casors
Gross weight 52 kg/pc (114 lb/pc) 37 kg/pc (81 lb/pc) 18 kg/pc (39 lb/pc)


Note: Due to product improvements design, specifications are subject to change without notice.
