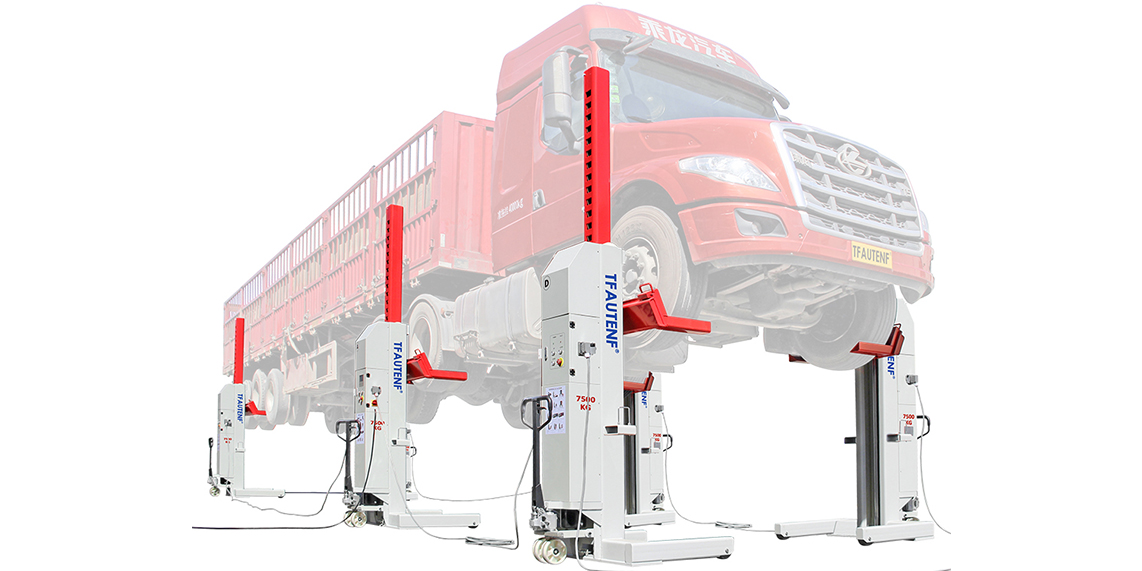

TF-6155/TF-6175 cabled truck lift

Download: PDF

cabled truck lift

ODM/OEM service available
1. LCD screen on master column to show the exact lifting height and fault warnings;
2. Operation at each column, up / down / lock/emergency stop;
3. Communication cable to ensure stable communication;
4. Power line connected to master column only;
5. Hydraulic trolley helps to move the column easily and makes your work easy and comfortable;
6. Adjustable wheel support for more kinds of wheels;

Other features
◆ Master / Slave columns;
◆ With or without cable at your choice;
◆ Hydraulic drive, insensitive and nearly maintenance-free.
◆ Flattened base frame for vehicles with low ground clearance;
◆ Double safety guaranteed by both hydraulic flow control and mechanical locks;
◆ SCM technology guarantees synchronization;
◆ Remote control handle with 5meters cable available;
◆ Hydraulic pallet jack at your choice;
◆ Lifting beam available;

Brief introduction
truck hoist

Truck lift refers to a mechanism or device that raises a truck off the ground, allowing for easier access to the underside of the vehicle or to lift heavy objects onto the truck bed. There are several types of truck lifts, including hydraulic truck lifts, scissor truck lifts, and parallelogram truck lifts, each with their own unique features and applications. These truck lifts are commonly used in automotive repair shops, construction sites, and warehouses to improve productivity and safety.
TFAUTENF Wireless Heavy Duty Truck Lift is designed for the purposes of heavy vehicles assembling, repairing, maintenance, oil-changing, washing etc. It is designed and manufactured under European standard EN 1493:2010.

Specifications/Models TF-6155 TF-6175
Product name 6 column electric hydraulic truck lift 6 column electric hydraulic truck lift
Column quantity 6 6
Lifting capacity 33 tons/set (72752 lb/set) 45 tons/set (99208 lb/set)
Lifting stroke 1650 mm (65 in) 1650 mm (65 in)
Max. lifting height 1750 mm (68.9 in) 1750 mm (68.9 in)
Applicable tire diameter 500~1120 mm (20~44 in) 500~1120 mm (20~44 in)
Fork length 402 mm (15.8 in) 402 mm (15.8 in)
Lifting Time 120 s 120 s
Falling time 110 s 110 s
Working voltage 220V/380V 220V/380V
Column size (L*W*H) 1100×1330×2250 mm (43.3×52.4×88.6 in) 1100×1330×2250 mm (43.3×52.4×88.6 in)
Column weight 580 kg (1278 lb) 600 kg (1322 lb)
Mobile axle stands Optional Optional

bus lift
Note: Due to product improvements design, specifications are subject to change without notice.
