TF-4155/TF-4175 cabled truck lift

Download: PDF

ODM/OEM service available
1. LCD screen on master column to show the exact lifting height and fault warnings;
2. Operation at each column, up / down / lock / emergency stop;
3. Communication cable to ensure stable communication;
4. Power line connecetd to master column only;
5. Hydraulic trolley helps to move the column easily and makes your work easy and comfortable;
6. Ajustable wheel support for more kinds of wheels;

Click for its working video.

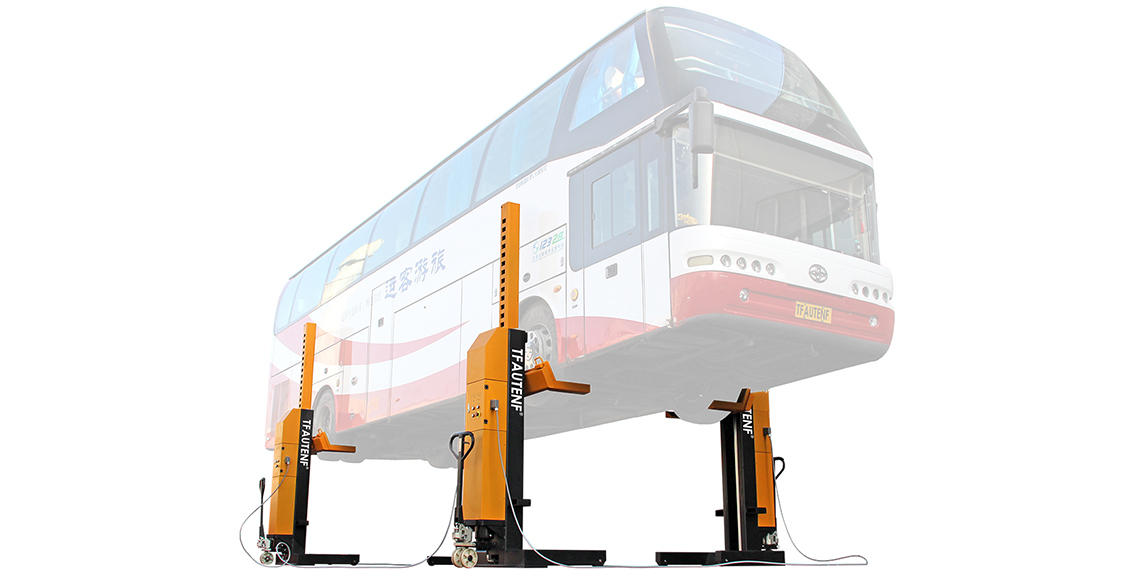

TFAUTENF Heavy Duty Mobile Column Lift is designed for the purposes of heavy vehicles assembling, repairing , maintenance, oil-changing, washing etc. It is designed and manufactured under European standard EN 1493:2010.

Other features
◆ Master / Slave columns;
◆ With or without cable at your choice;
◆ Hydraulic drive, insensitive and nearly maintenance-free.
◆ Flattended base frame for vehicles with low ground clearance;
◆ Double-safety guaranteed by both hydraulic flow control and mechanical locks;
◆ SCM technology guarantees synchronization;
◆ Remote control handle with 5meters cable available;
◆ Hydraulic pallet jack at your choice;
◆ Lifting beam available;

Specification / Models TF-4155 TF-4175
Product name mobile heavy duty column lift with communication cable mobile heavy duty column lift with communication cable
Column quantity 4 4
Lifting capacity 22 tons/set (48500 lb/set) 30 tons/set (66138 lb/set)
Lifting stroke 1650 mm (65 in) 1650 mm (65 in)
Max. lifting height 1750 mm (68.9 in) 1750 mm (68.9 in)
Applicable tire diameter 500~1120 mm (20~44 in) 500~1120 mm (20~44 in)
Fork length 402 mm (15.8 in) 402 mm (15.8 in)
Lifting Time 120 s 120 s
Falling time 110 s 110 s
Working voltage 220V/380V 220V/380V

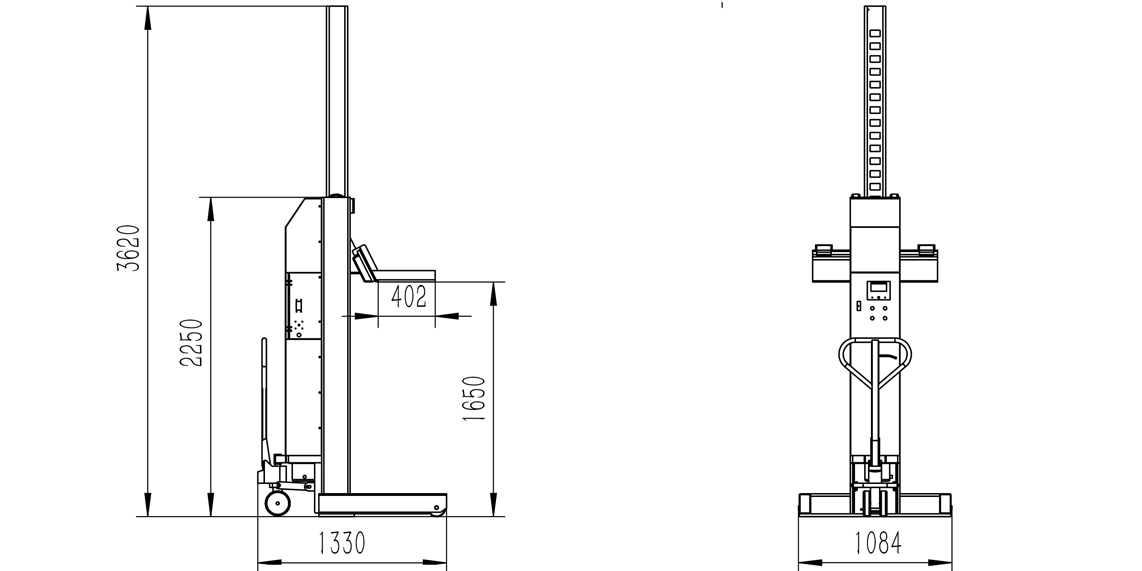

Column size (L*W*H) 1100×1330×2250 mm (43.3×52.4×88.6 in) 1100×1330×2250 mm (43.3×52.4×88.6 in)
Column weight 580 kg (1278 lb) 600 kg (1322 lb)
Mobile axle stands Optional Optional

Note: Due to product improvements design, specifications are subject to change without notice.
