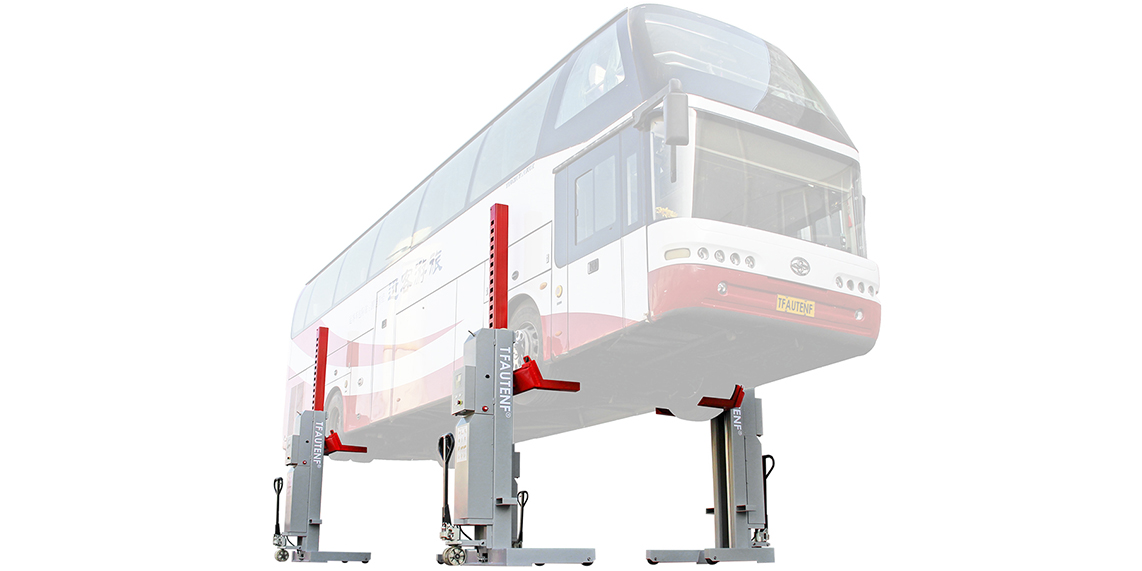

4-column wireless truck lift

Download: PDF



Click for working video: TFAUTENF truck lift
◆ hydraulic drive, low noise and nearly maintenance-free;
◆ wireless communication, SCM technology guarantees synchronization;
◆ LCD screen on all columns to show to show real-time lifting height, fault warnings and troubleshooting;
◆ mobile columns make your work easy and comfortable;
◆ operations available at all columns, UP/DOWN/LOCK/EMERGENCY STOP;
Specification / Models TF-4055 TF-4075
Product name hydraulic truck lift hydraulic truck lift
Power unit electric-hydraulic pump electric-hydraulic pump
Communication type wireless communication wireless communication
Lifting capacity 22 tons/set (48500 lb/set) 30 tons/set (66138 lb/set)
Lifting stroke 1650 mm (65 in) 1650 mm (65 in)
Max. lifting height 1750 mm (68.9 in) 1750 mm (68.9 in)
Applicable tire diameter 500~1120 mm (20~44 in) 500~1120 mm (20~44 in)
Fork length 402 mm (15.8 in) 402 mm (15.8 in)
Working voltage DC 24V DC 24V
Operation voltage DC 24V DC 24V
Charging voltage 110V/220V 1ph 110V/220V 1ph
Motor power per column 3 KW 3 KW

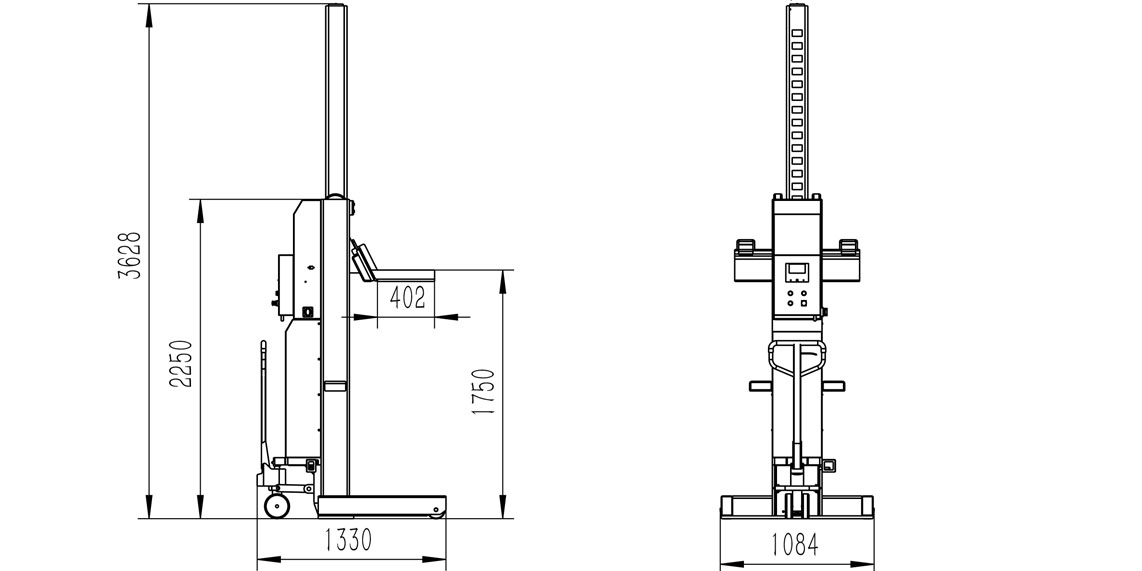

Column size (L*W*H) 1100×1330×2250 mm (43.3×52.4×88.6 in) 1100×1330×2250 mm (43.3×52.4×88.6 in)
Column weight 650 kg (1433 lb) 670 kg (1477 lb)
Mobile axle stands Optional Optional

Note: Due to product improvements design, specifications are subject to change without notice.
