TF-F50 5-ton 4-post wheel alignment lift

Download: PDF

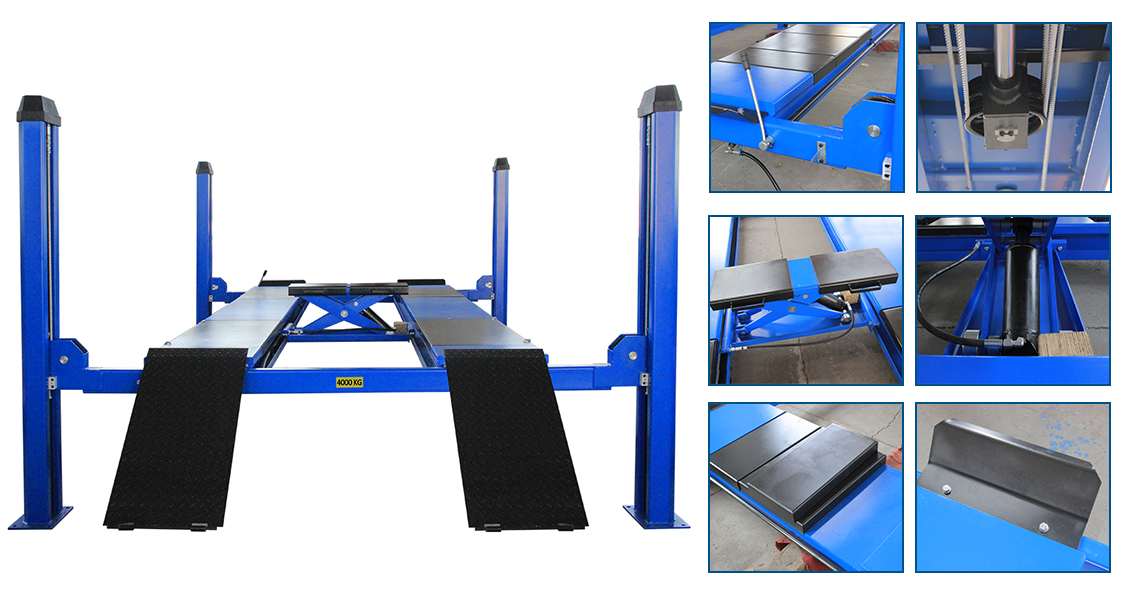

four post car lift
Click to see its working video: TFAUTENF four post car lift

Specifications / Product name four post car lift
Power unit electric-hydraulic
Lifting capacity 5000 kg/11023 lb
Sub-lift lifting capacity 2000 kg/4409 lb
Lifting height 1500 mm/59 in
Sub-lift lifting height 470 mm/18.5 in
Platform length 5000 mm/196.85 in
Runway plate width 550 mm/21.65 in
Unlocking method manual unlocking
Rated hydraulic pressure 18 Mpa
Working voltage 220V/380V
Working power 2.2 KW
Overall weight 1500 kg/3306 lb

1. high quality electric-hydraulic pump, powerful, and low failure rate;

2. manual unlocking system, easy and convenient to operate;

3. locking system keep working during lifting, to ensure its safety even when wire rope breaks;

4. rolling jack rolls smoothly, and helps to raise the vehicle from different positions;

5. design of removable board and sliding plate allows the lift to work as wheel-alignment lift;

6. ISO 9001: 2015 and CE certificated;

Note: Due to product improvements design, specifications are subject to change without notice.
