TF-PL403 four post car lift (three parking spaces)

Download: PDF

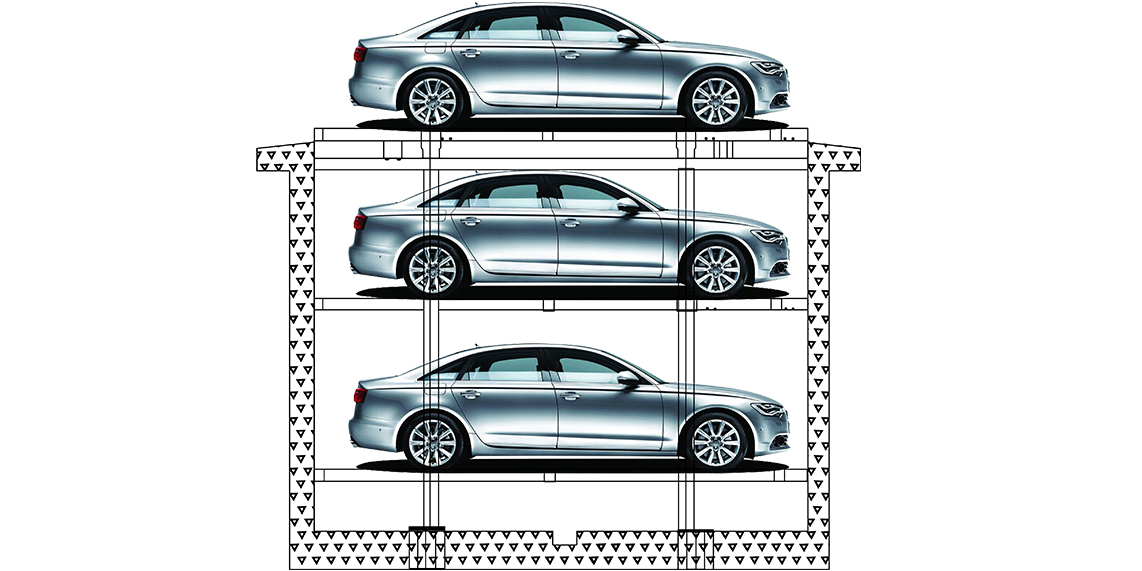

underground four post car parking lift with 3 parking spaces

Models / Specifications TF-PL403
Lifting capacity 2000 kg
Lifting height 1700 mm
Vertical speed 2~3 m/min
Lock release electric unlock
Installation space 5200 × 2900 × 4060 mm
Drive mode motor + chain
Vehicle size 5000 × 1850 × 1550 mm
Parking mode 1 aboveground + 2 underground
Parking space 3
Lifting time 70S
Falling time 60S
Working voltage 220V/380V, 50Hz/60Hz, 1Ph/3Ph
Working power 5.5 KW

  1. ◆ Motor-driven and chain balance system;
  2. ◆ Fully utilization of underground space;
  3. ◆ Directly park or pick up the car at any level independently;
  4. ◆ Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance;
  5. ◆ Multiple mechanical locks on posts to ensure safety;
  6. ◆ Flexible designed according to customer requirements, suitable for residential & commercial use;
  7. ◆ Electric sensors to confirm no persons or objects before rising up/down the platforms’
Note: Due to product improvements design, specifications are subject to change without notice.
