TF-PL402 four post car lift (two parking spaces)

Download: PDF

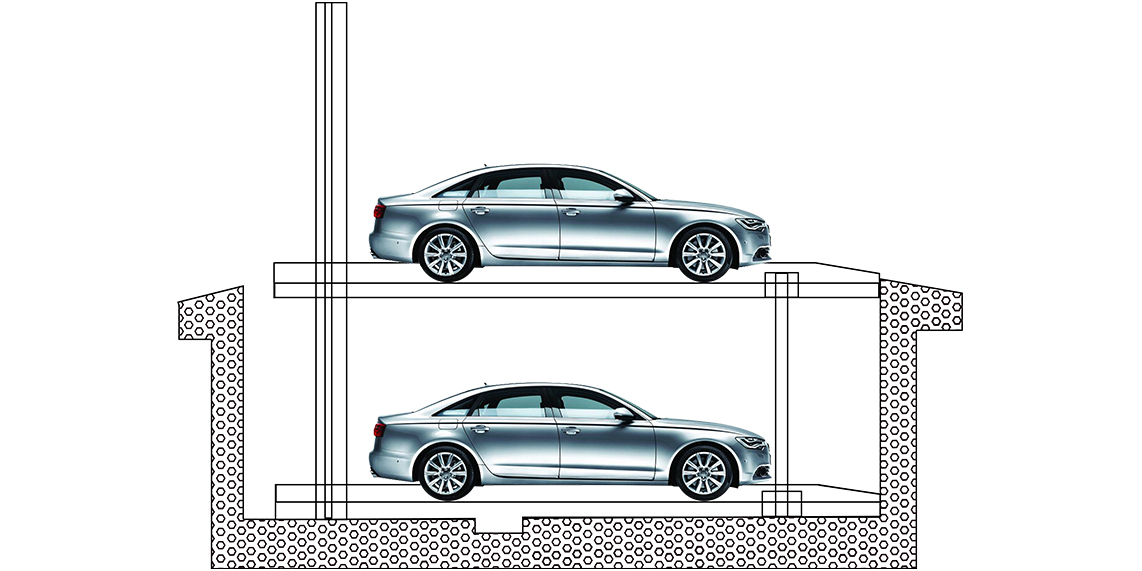

underground four post car parking lift with two parking spaces

Models / Specifications PL-402
Lifting capacity 2000 kg
Total height 4290 mm
Vertical speed 2.6 m/min
Drive mode hydraulic driven + roller chain
Vehicle size 5000 × 1850 × 1750 mm
Parking space 2
Safety device anti-falling device
Operation mode automatic/manual
Working voltage 220V/380V, 50Hz/60Hz, 1Ph/3Ph
Working power 3.7  KW

  1. ◆ Hydraulic driven and chain balance system;
  2. ◆ Fully utilization of underground space;
  3. ◆ Directly park or pick up the car at any level independently;
  4. ◆ Galvanized wave plates platforms, cold bending and strong pressure & humidity resistance;
  5. ◆ Multiple mechanical locks on posts to ensure safety;
  6. ◆ Flexible designed according to customer requirements, suitable for residential & commercial use;
  7. ◆ Electric sensors to confirm no persons or objects before rising up/down the platforms;
Note: Due to product improvements design, specifications are subject to change without notice.
