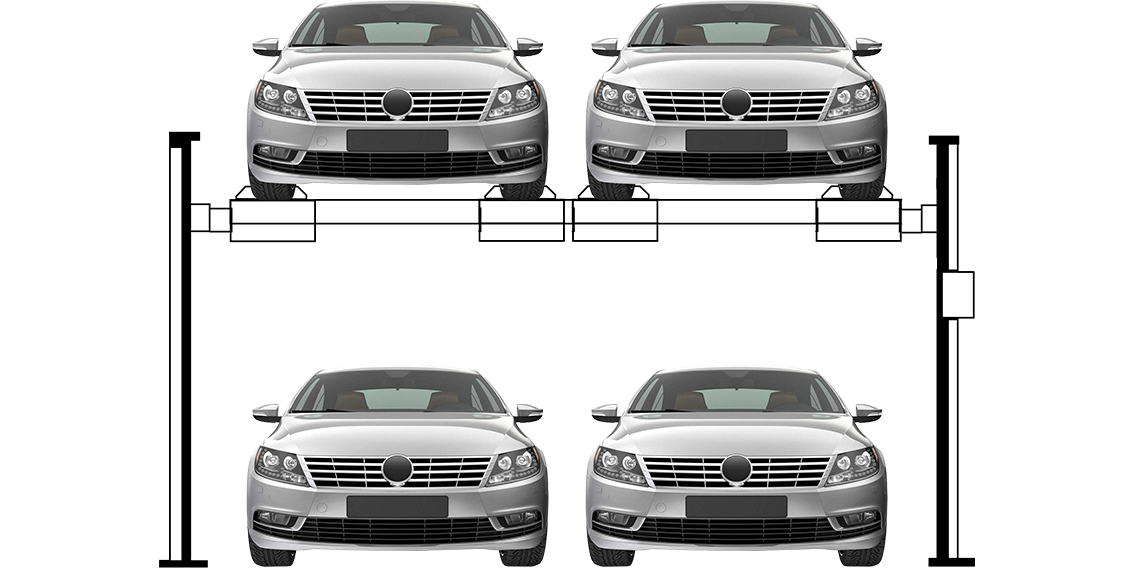

TF-PL414 four post car lift (four parking spaces)

Download: PDF

four post car parking lift

Models / Specifications PL-414
Lifting capacity 4000 kg
Lifting height 2000 mm
Lock release manual unlock
Installation space 5530 × 4629 × 2426 mm
Parking width 1898 mm × 2
Lifting time 70S
Falling time 60S
Working voltage 220V/380V, 50Hz/60Hz, 1Ph/3Ph
Working power 2.2 KW

  1. ◆ Hydraulic driven and steel rope lifting system;
  2. ◆ Automatic lock & electric lock release
  3. ◆ The whole sliding framework synchronous balance system;
  4. ◆ Space & cost saving due to its compact design;
  5. ◆ Suitable for multi-vehicle parking &storage;
  6. ◆ Steel parts are sandblasted then anti-corrosion primer painted and top finish color coated;
Note: Due to product improvements design, specifications are subject to change without notice.
