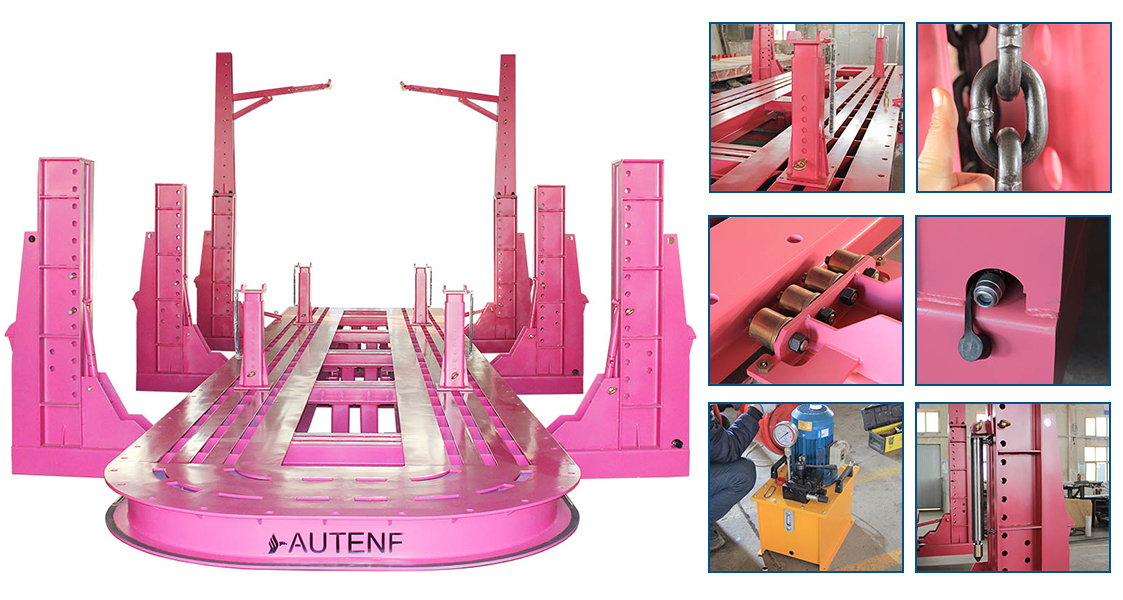

TF-ATB1003 heavy ducty auto frame machine

Download: PDF


ODM/OEM service available.

Click for its video - how to fix pulling tower on platform
Click for its video - movement of pulling tower around platform
Click for its video - operation of lifting jack

Specification / Models ATB1003
Power unit pneumatic-hydraulic (electric-hydraulic optional)
Platform material I-beam/H-beam/manganese steel
Platform length 9600~14000 mm (31.5~46 feet)
Platform width 2460 mm (96.8 in)
Platform height 600 mm (23.6 in)
Lifting capacity 120000 kg (264555 lb)
Pulling tower qty. 4~6 pc
Pulling range 270o
Max. pulling power 784 KN
Hydraulic pressure 70 MPa
Usage auto frame machine for heavy truck, passenger car, bus, trailer, etc.
Note: Due to product improvements design, specifications are subject to change without notice.
