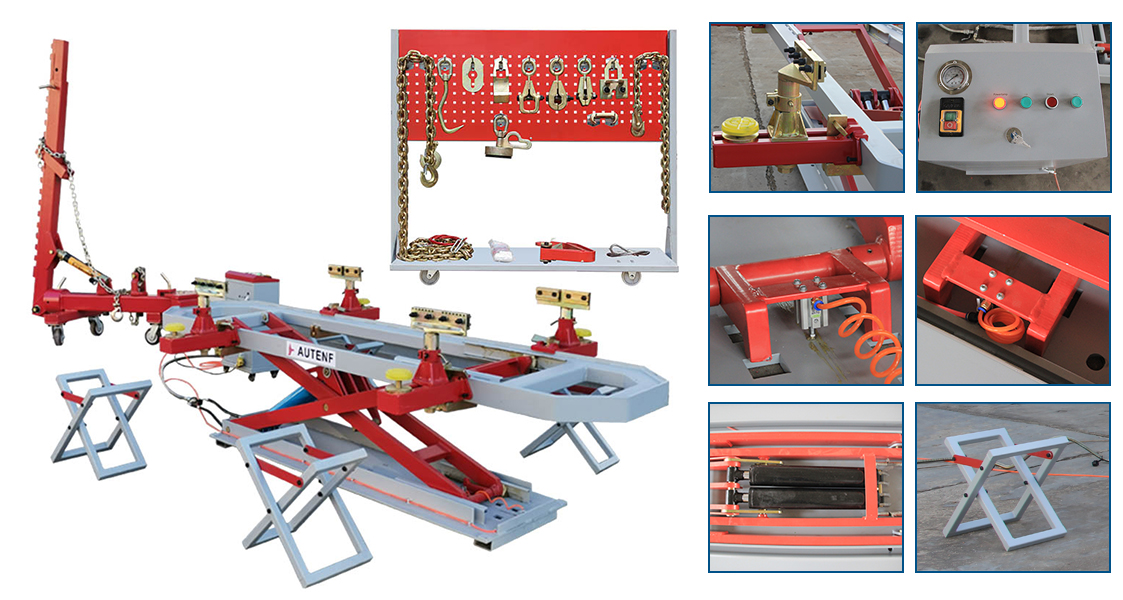

TF-AEB2000 portable car frame machine

Download: PDF



ODM/OEM service available.

Specification / Models AEB2000
Power unit electric-hydraulic optional
Platform material rectangular tube
Platform lifting type parallel lifting
Platform length 3440 mm (135.4 in)
Platform width 850 mm (33.5 in)
Platform height 120~1300 mm (4.7~51 in)
Lifting capacity 2500 kg (5511 lb)
Pulling tower qty. 1 pc
Pulling range 360°
Max. pulling power 49 KN
Note: Due to product improvements design, specifications are subject to change without notice.
