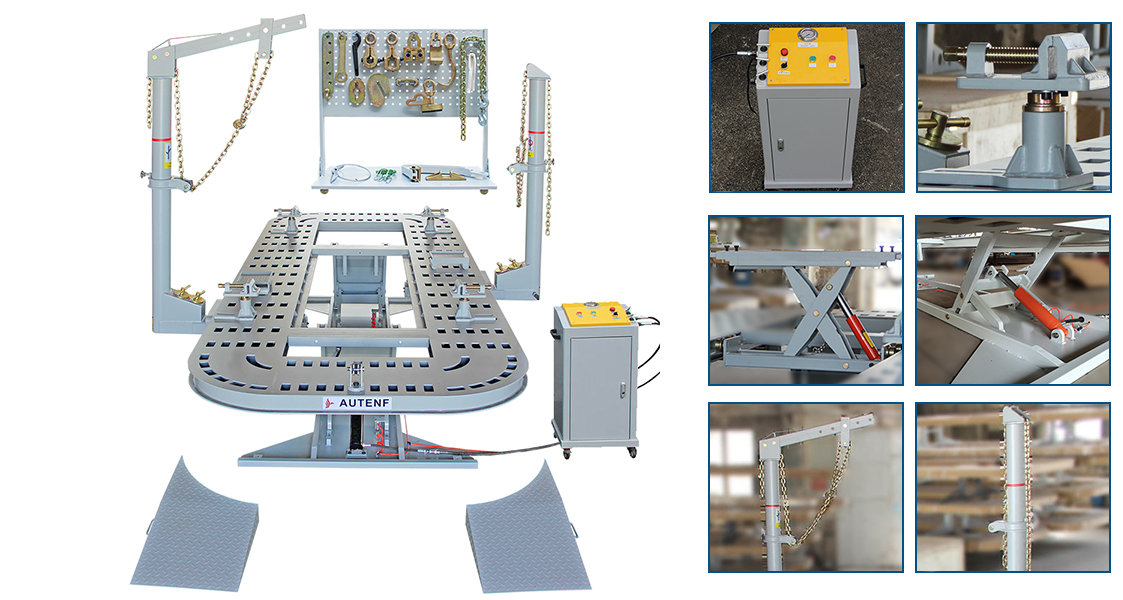

TF-502CB parallel lifting car frame machine

Download: PDF

car frame machine
ODM/OEM service available.
Click for its working video: TFAUTENF car frame machine

Specification / Models TF-502CB-SE TF-502CB-LE TF-502CB-CE
Power unit electric-hydraulic
Platform material manganese steel
Platform lifting type tilting lifting from 0~300mm, parallel lifting from 300~1020 mm
Platform length 5600 mm (18.37 feet) 6000 mm (19.68 feet) customized
Platform width 2200 mm (86.6 in)
Platform ring width 610 mm (24 in)
Platform height 300~1020 mm (11.8~40.2 in)
Lifting capacity 3500 kg (7716 lb)
Pulling tower qty. 2 pc (1~5 pc optional)
Pulling range 360°
Max. pulling power 98 KN
Hydraulic pressure 70 MPa
Pneumatic pressure 0.65 MPa
Note: Due to product improvements design, specifications are subject to change without notice.
