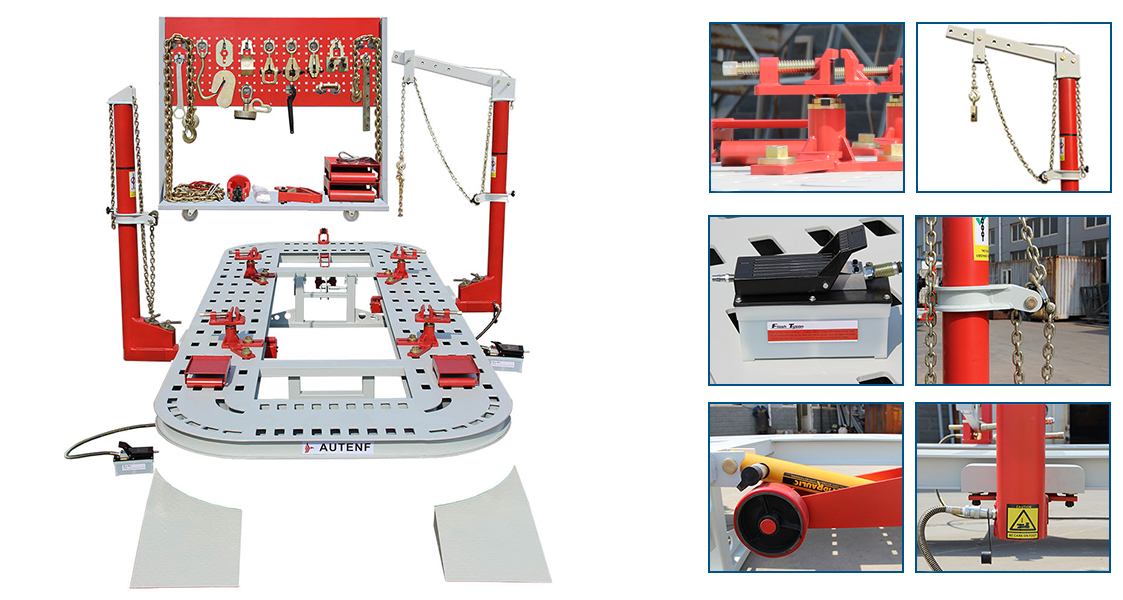

TF-502CB manganese steel car frame machine

Download: PDF



ODM/OEM service available.

Specification / Models TF-502CB-SP TF-502CB-LP TF-502CB-CP
Power unit pneumatic-hydraulic (electric-hydraulic optional)
Platform material manganese steel
Platform lifting type tiltable lifting
Platform length 5200 mm (17 feet) 5600 mm (18.37 feet) customized
Platform width 2200 mm (86.6 in)
Platform ring width 610 mm (24 in)
Platform height 550 mm (21.7 in)
Lifting capacity 3500 kg (7716 lb)
Pulling tower qty. 2 pc (1~5 pc available)
Pulling range 360°
Max. pulling power 98 KN
Hydraulic pressure 70 MPa
Pneumatic pressure 0.65 MPa
Note: Due to product improvements design, specifications are subject to change without notice.
