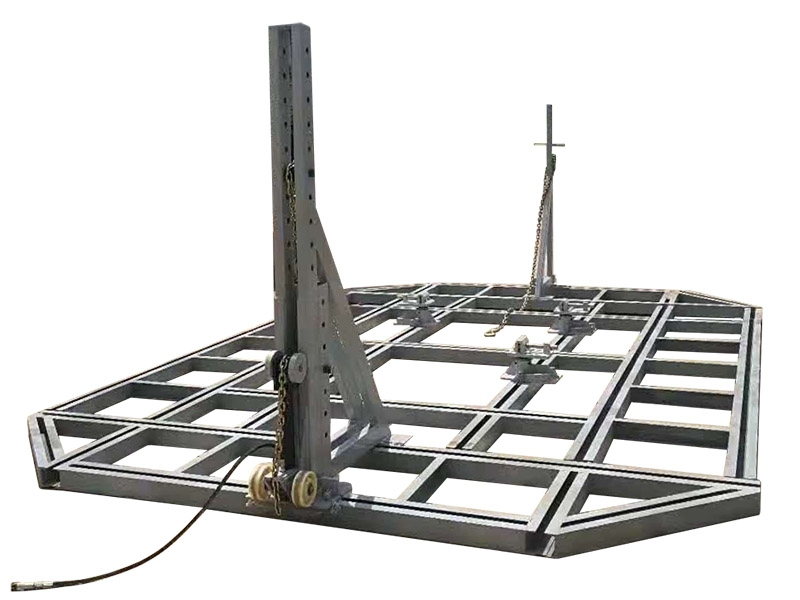

T-D8C on-ground car frame machine

Download: PDF

on-ground car frame machine

Model/ Specifications T-D8C
Power unit pneumatic-hydraulic
Frame material Q345B manganese steel
Frame length 7 m
Frame width 4 m
Frame height 10 mm
Pulling tower qty. 2 pc
Pulling tower size 900×300×1780 mm
Pulling range 360°
Max. pulling power 10 tons
Hydraulic pressure 70 MPa
Pneumatic pressure 0.65 Mpa

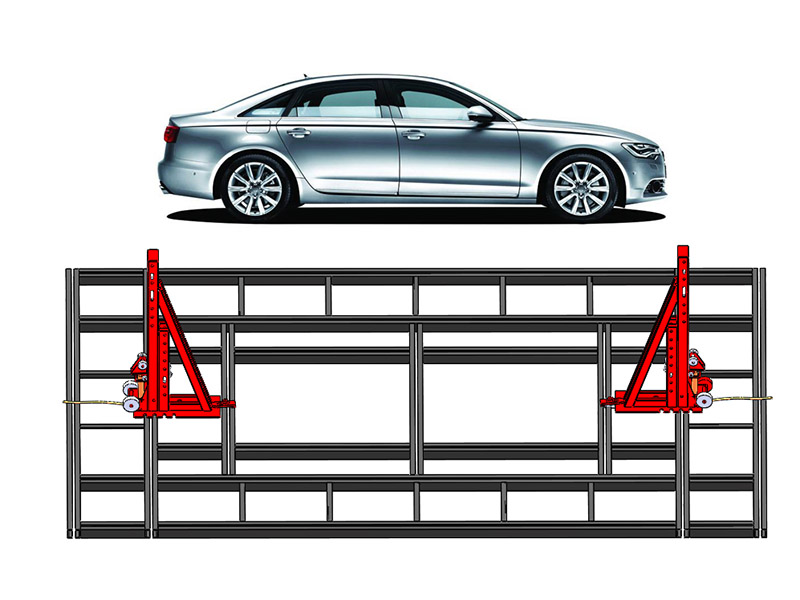

◆ Underground frame allows easy drive on and off of any vehicle;
◆ Underground frame + aboveground pulling tower requires less space;
◆ Adopt high-quality hydraulic pump, more powerful, but low failure rate;
◆ With high-strength pulling accessories, it is more easily to recover car distortion;
Note: Due to product improvements design, specifications are subject to change without notice.
