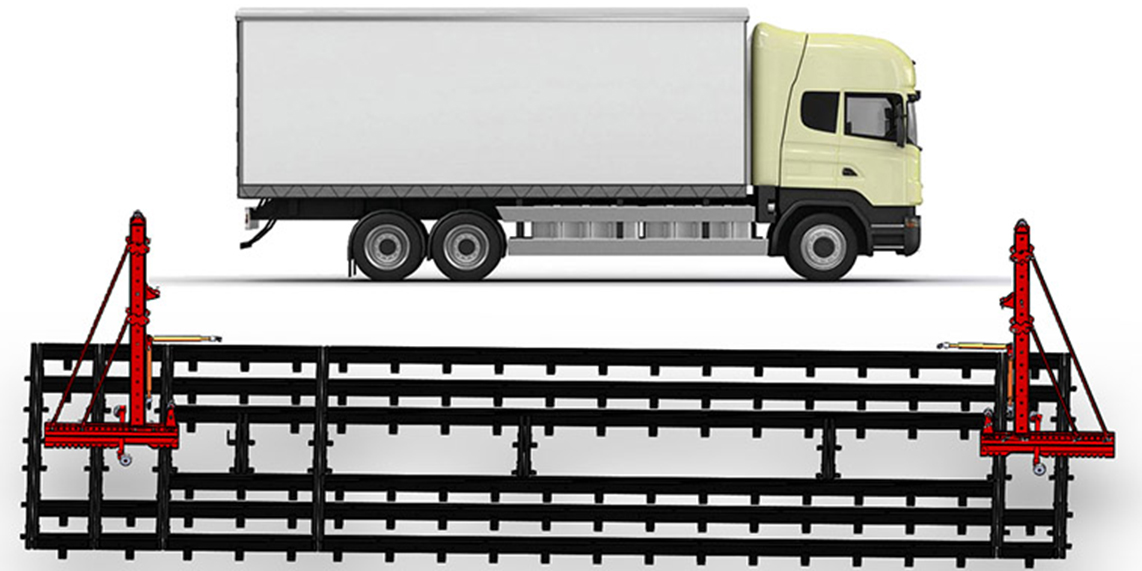

T-D8T on ground car frame machine

Download: PDF



Model/Specifications T-D8T
Power unit pneumatic-hydraulic (electric-hydraulic optional)

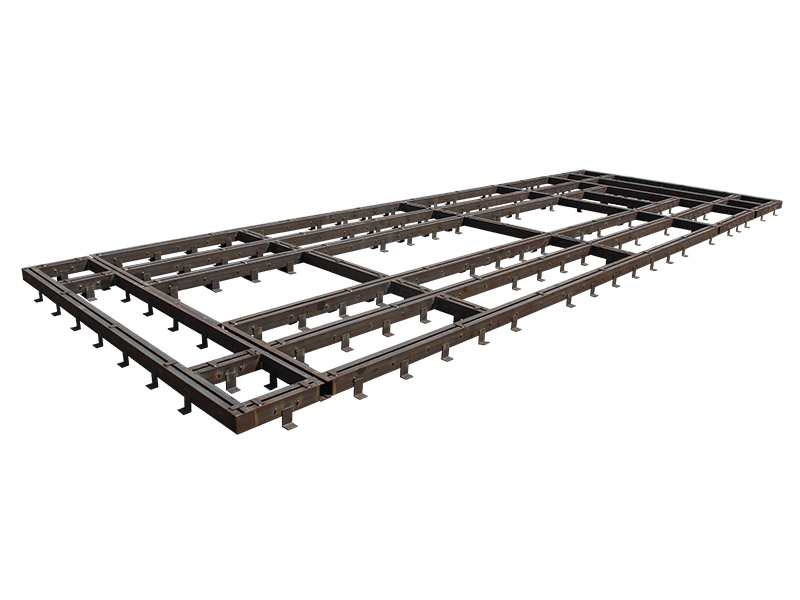

Frame material Q345B manganese steel
Frame length 14 m
Frame width 5 m
Frame height 160 mm (260 mm with supporting legs)
Pulling tower qty. 2 pc
Pulling tower size 1800×1356×3600 mm
Pulling range 360°
Max. pulling power 25 ~ 100 tons
Hydraulic pressure 70 MPa
Pneumatic pressure 0.65 Mpa
Usage frame repair system for commercial vehicles, such as lorry, truck, trailer, bust etc.

◆ Underground frame allows easy drive on and off of any vehicle;
◆ Underground frame + aboveground pulling tower requires less space;
◆ Adopt high-quality hydraulic pump, more powerful, but low failure rate;
◆ With high-strength pulling accessories, it is more easily to recover car distortion;

Note: Due to product improvements design, specifications are subject to change without notice.
